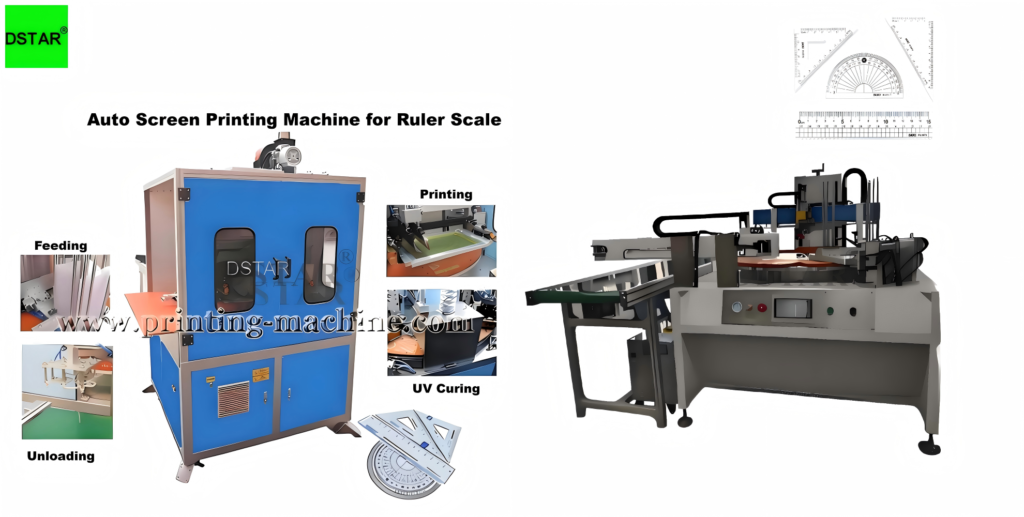

Fully Automatic Ruler Screen Printing Machine | High-Precision UV Rotary Screen Printing Equipment

Machine Introduction

Fully Automatic Ruler Screen Printing Machine—The dedicated screen printing machine for stationery rulers is a high-precision and fully automatic turntable screen printing device developed targeted at the production pain points of the plastic stationery industry. It is mainly used for the precision printing process of various rulers such as student stationery rulers and office drawing rulers. The equipment effectively solves the industry shortcomings of traditional ruler printing processes, including precision deviation, scale misalignment, ink smudging, product deformation, high labor cost and limited production capacity. Compatible with a full range of ruler substrates such as PVC, acrylic, PP, PS plastic, thickened paper, bamboo and wood, the machine can complete one-stop single-color and multi-color overprinting for precise scales, graduation lines, brand LOGOs, product models, text parameters, decorative patterns and anti-counterfeiting marks. Adopting a standardized industrial-grade structure design, the machine features a stable body and strong anti-interference performance, adapting to complex factory production environments. It meets the production requirements of both small-batch customization and large-scale standardized mass production, serving as the core intelligent special equipment for process upgrading, quality improvement, loss control and capacity optimization in the stationery printing industry.

Structure & Working Principle

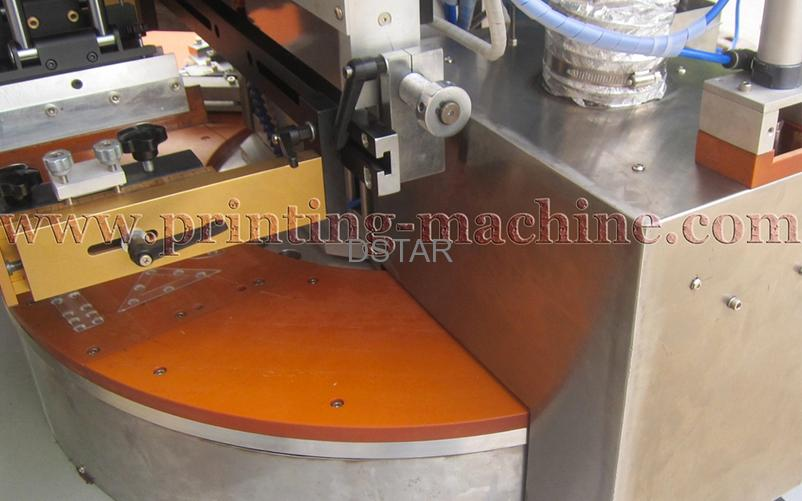

Adopting a high-stability multi-station turntable structure with optional 5-station and 6-station configurations, the machine is driven by a high-precision cam splitter to achieve zero-position error in station switching. It operates stably with low vibration and supports 24-hour continuous cyclic production. Equipped with an integrated PLC intelligent control system and touch screen, the machine supports digital fine-tuning of all parameters, including printing speed, ink scraping pressure, ink return angle, printing stroke and curing time, featuring simple operation and low operating threshold. The workbench integrates an XY-axis precision fine-tuning mechanism and vacuum adsorption function, which can firmly fix thin ruler materials, completely avoid warping, shifting and position deviation during printing, and ensure uniform printing position and regular, symmetrical scales for all rulers.

Core Printing Advantages

The equipment is equipped with an upgraded industrial grade dual scraper balanced printing system. The scraper is made of imported wear-resistant adhesive material, which has high toughness, corrosion resistance, and is not easily deformed. The ink scraping is uniform, the ink return is smooth, the ink coverage is consistent, the printed product scale lines are uniform, straight, delicate and clear, the edges are flat without burrs, serrations, or ink diffusion and smudging, and the printing accuracy fully meets the strict quality standards of high-end stationery and export stationery. Equipped with an integrated LED UV cold light curing module as standard, it adopts low-temperature instant curing technology, which is different from the traditional hot air and high-temperature drying process. It can achieve synchronous printing and curing without the need for natural drying, and can quickly set and cure in one second. The low-temperature processing mode throughout the process will not damage heat sensitive substrates such as plastic and acrylic, completely solving production defects such as ruler deformation, bending, yellowing, whitening, cracking, and material brittleness, and fully preserving the original flatness, transparency, and texture of the ruler material. The finished ink has excellent adhesion, friction resistance, scratch resistance, and is not easy to peel off. The appearance is exquisite and uniform, and the service life is greatly improved.

Production Efficiency & Automation Expansion

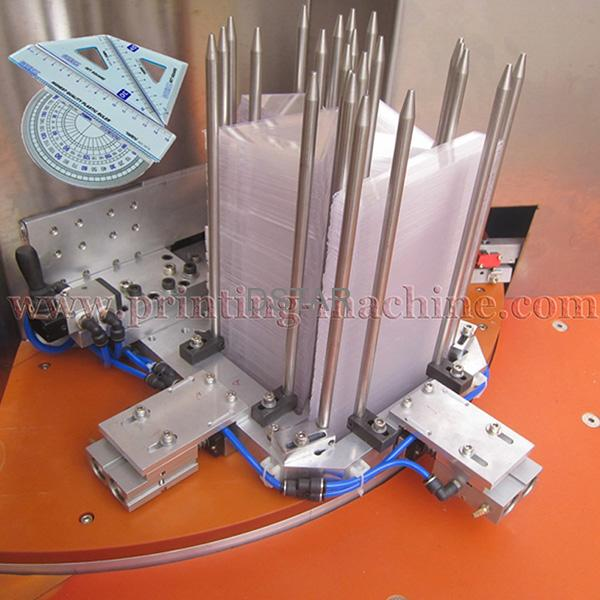

With powerful mass production performance, fully meeting the mass production needs of large and medium-sized stationery factories. It supports single-color printing and high-precision multi-color overprinting, adapting to the high-precision printing requirements of complex patterns, multi-color scales and exquisite LOGOs. The machine supports modular upgrading and can be equipped with electrostatic dust removal devices and fully automatic loading and unloading manipulators as required, realizing unmanned automatic production of the whole process including dust removal, loading, printing, curing, discharging and collecting. It greatly reduces labor dependence and human errors, and significantly improves product qualification rate and production capacity. Built with a shock absorption and noise reduction structure, the whole machine operates stably with low wear and failure rate and long service life, suitable for long-term uninterrupted industrial production.

Application Scope

This machine is widely used in the printing and processing of various stationery rulers, including student ruler sets, office straight rulers, triangular rulers, protractors, scale rulers, curve rulers and special-shaped craft rulers, and adapts to multiple materials such as PVC, acrylic, plastic. It serves industries including stationery manufacturing, plastic products, cultural and creative gifts and craft products, and is the preferred intelligent equipment for automatic upgrading, quality improvement and cost reduction in the stationery printing industry.

Machine Advantages

Compared with general screen printing equipment on the market, this machine is specially customized for ruler printing technology with stronger professionalism, higher printing precision and better operational stability, fundamentally solving the industry pain points of easy deformation, scale deviation and low yield rate when processing rulers with general screen printing equipment. Every complete machine undergoes comprehensive commissioning and strict quality inspection before delivery, with stable and reliable performance, low failure rate and convenient maintenance. Long-term stable operation can be realized only through daily basic cleaning and maintenance.
