Beauty Nail Printing Machine

Beauty Nail Pad Printing Machine

Product:Beauty Nail Printing Machine

Printing color:1 color

Model:DX-NP1-90

Brand:DSTAR

Printing plate size:100*550mm

Ink cup size:φ90mm

Silicone Pad Vertical stroke:100mm

Silicone pad F/B stroke:350mm

Printing speed:800 pcs/hr

Machine size:L100*W85*H195cm

N.W:450KGS

Power:AC220V/1P/1000W

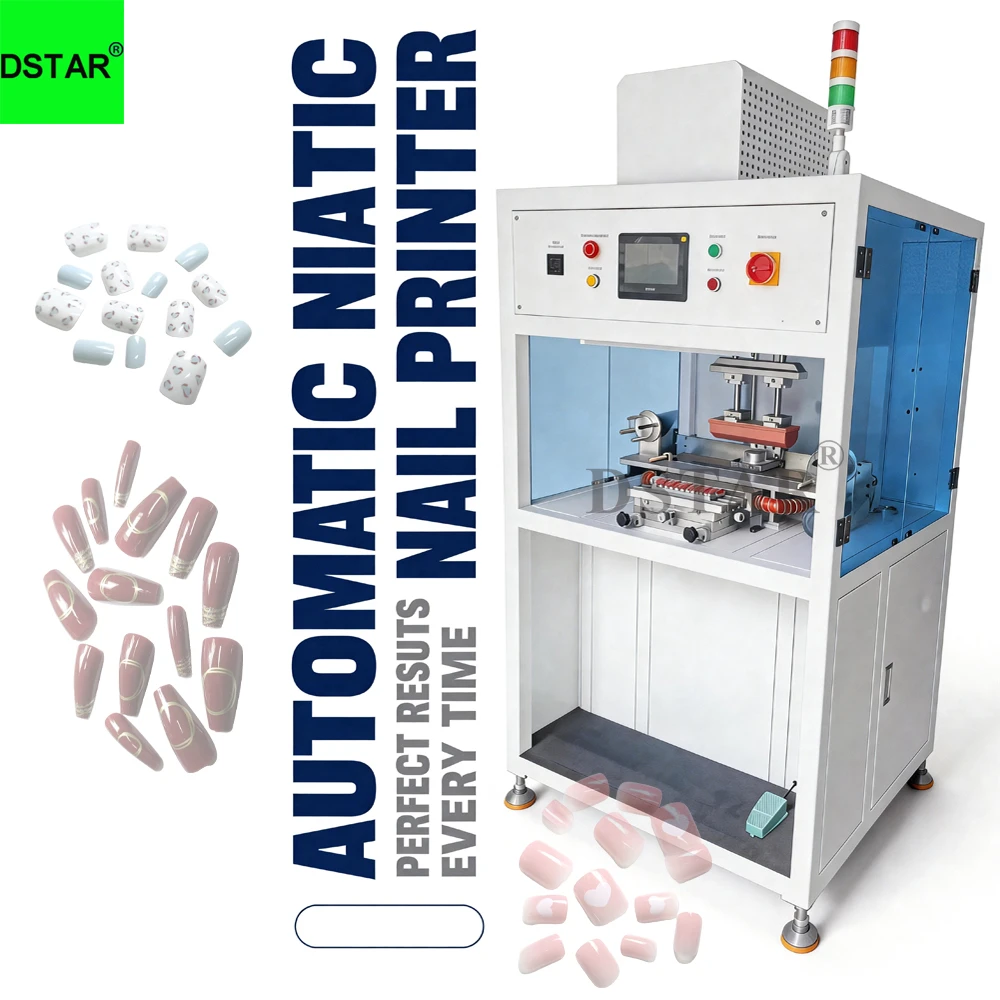

High-Precision Automatic Beauty Nail Printing Machine | Fully Servo-Driven Monochrome Solution

Engineered for perfection, this automatic pad printing machine is the ultimate solution for printing intricate patterns on nails and other high-demand monochrome products. Featuring a robust PLC control system and intuitive touchscreen interface, it brings industrial-grade precision to your fingertips.

Key Features:

• 【Precision Servo Control】 The entire X, Y, and Z-axis movements (Forward/Backward and Up/Down) of the printing pad are driven by high-performance servo motors. This guarantees unparalleled accuracy, allowing the soft pads to seamlessly conform to complex curved or uneven surfaces.
• 【Full Automation Workflow】 Say goodbye to manual maintenance. The system features an automatic pad cleaning unit, an automatic pad blowing function, and a side-to-side ink cup scraping mechanism for uniform ink distribution. This creates a closed-loop, fully automated process requiring minimal operator intervention.
• 【Smart Control System】 Equipped with an advanced PLC and a user-friendly touchscreen. Operators can easily set up, adjust, and monitor printing parameters such as speed, stroke length, and cleaning cycles with just a few taps.
• 【Safety & Reliability】 The fully enclosed safety frame structure keeps dust out and operators safe. An integrated fault alarm light provides immediate visual and audio alerts, ensuring rapid troubleshooting and minimizing downtime.

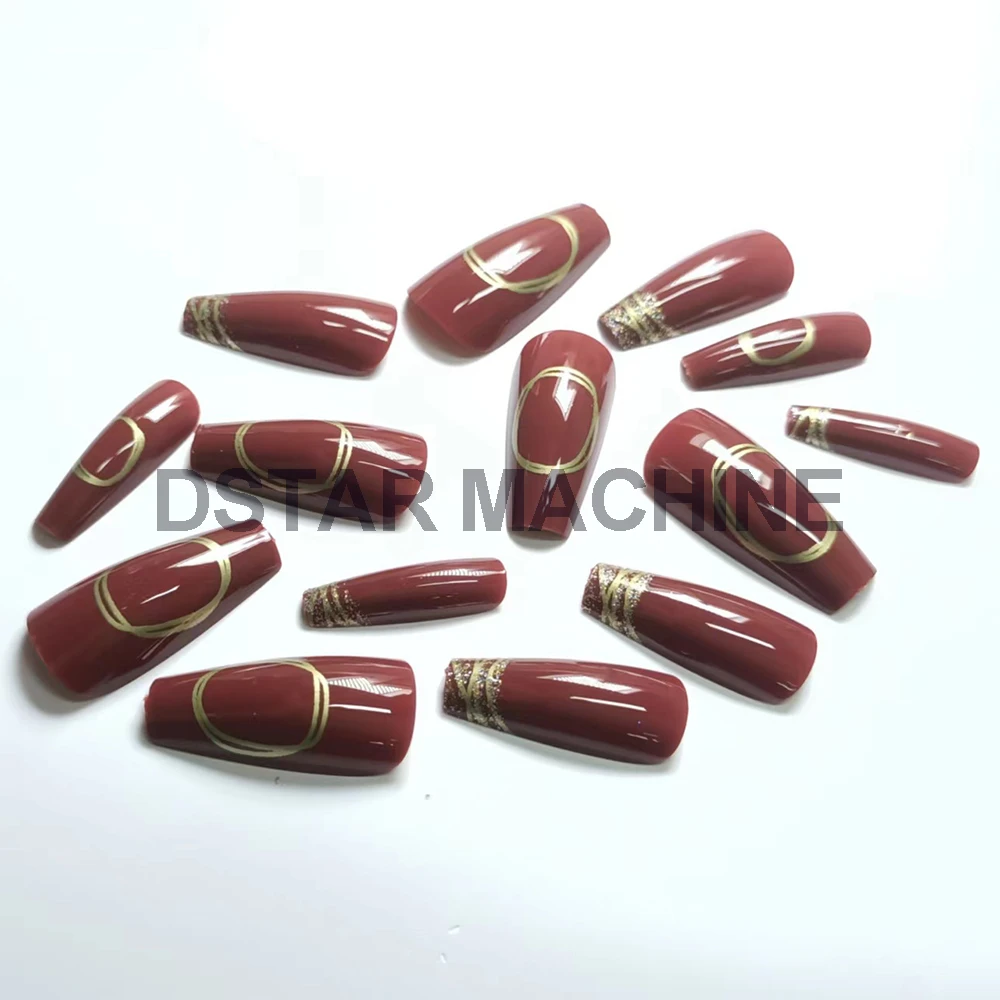

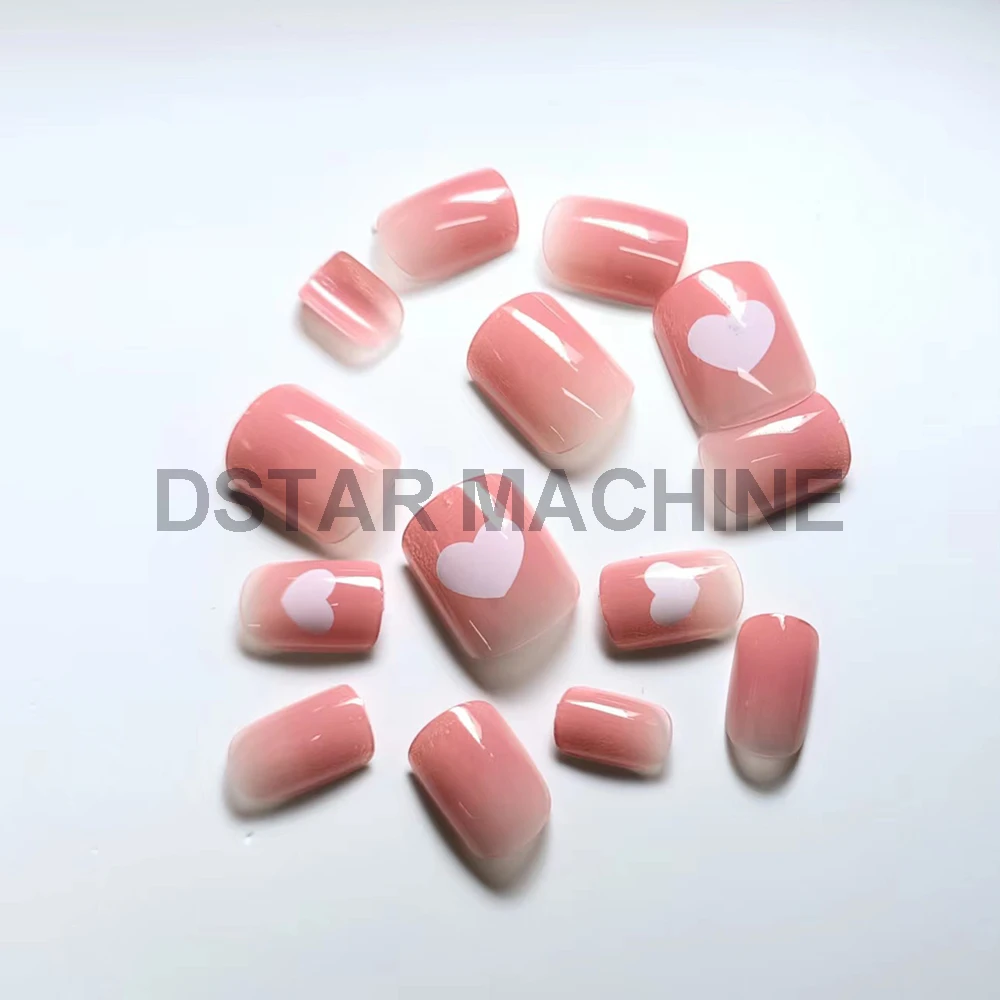

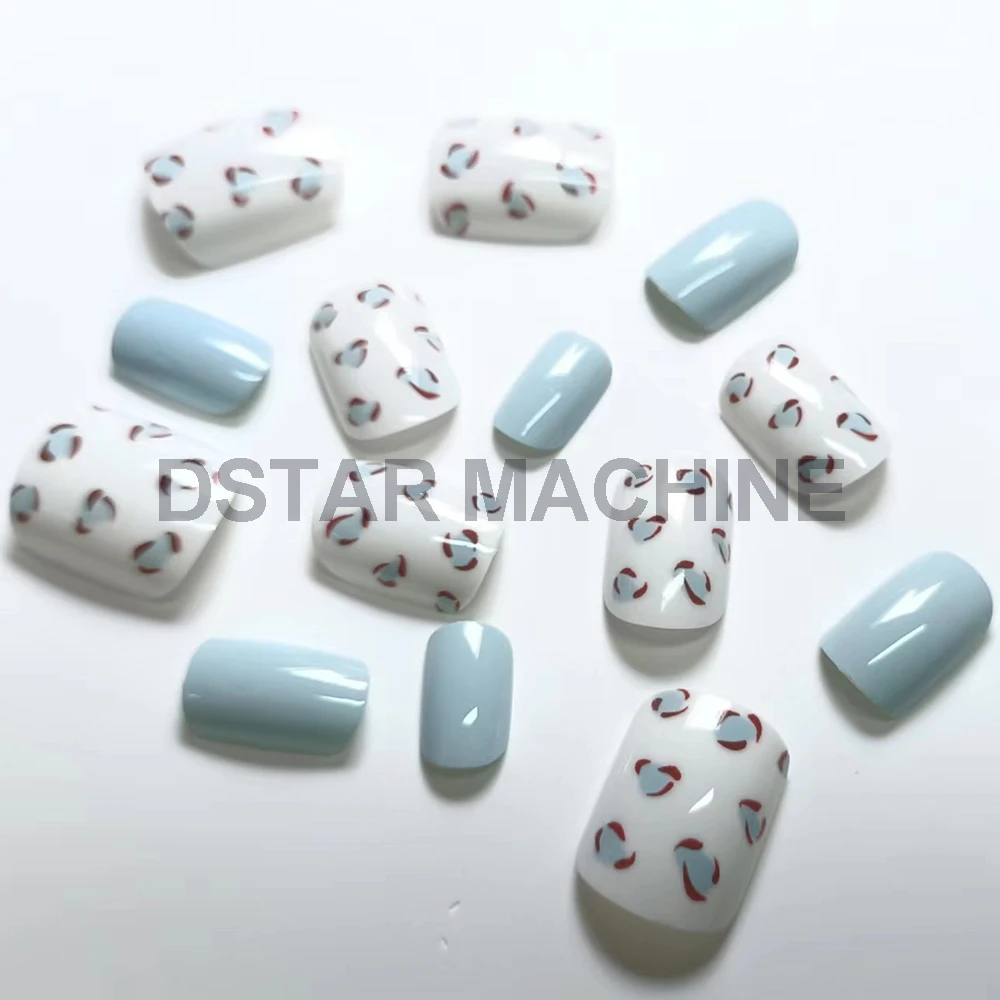

Ideally suited for high-volume nail art printing (as shown), this machine is also highly versatile for high-precision monochrome printing on compact products, including electronic gadget accessories, cosmetic packaging, intricate industrial parts, and more.
