Pad Printing Machine for Tempered Glass Screen Protectors
PRODUCT PARAMETERS
Description

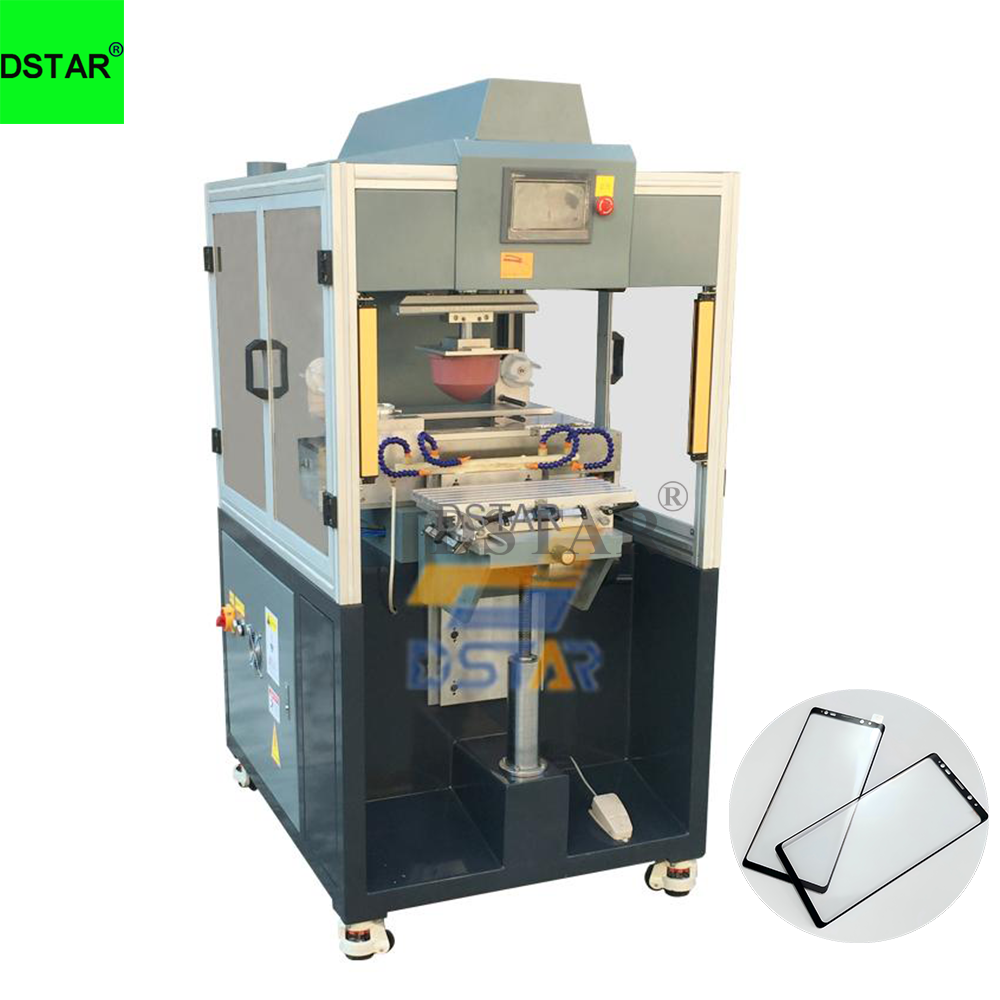

Customized Pad Printing Machine for Tempered Glass Screen Protectors for Mobile Phones
Machine Data Sheet
| Product | Pad Printing Machine for Tempered Glass Screen Protectors |
| Brand | DSTAR |
| Model | DX-SCP1 |
| Printing color | 1 color |
| Ink scrapping | sealed ink cup |
| Ink cup diameter | 130mm |
| Printing plate size | 0.5*150*500mm |
| Drive | servo motor |
| Printing speed | 400-500 pcs/hr |
| Voltage | AC220V/50Hz/1P/200W |
| Machine size | L100*W90*H170cm |
| Packing | Wooden Case |
Machine Features
- The whole machine adopts a full servo motor drive solution, featuring stable operation and precise positioning to ensure high-precision printing results for pad printing.
- Standardly equipped with original Panasonic PLC control system and high-definition touch screen, it delivers stable programs and intuitive, easy operation.
- Adopting a hermetically sealed ink cup structure, it effectively reduces ink volatilization and consumption while improving workshop cleanliness.
- Fitted with an automatic silicone pad cleaning mechanism,removing residual ink on the silicone pad, lowering manual labor and boosting product yield.
- Designed for tempered and cured glass printing, it comes with custom dedicated pad printing silicone pads that offer even ink transfer, excellent wear resistance and no degumming.

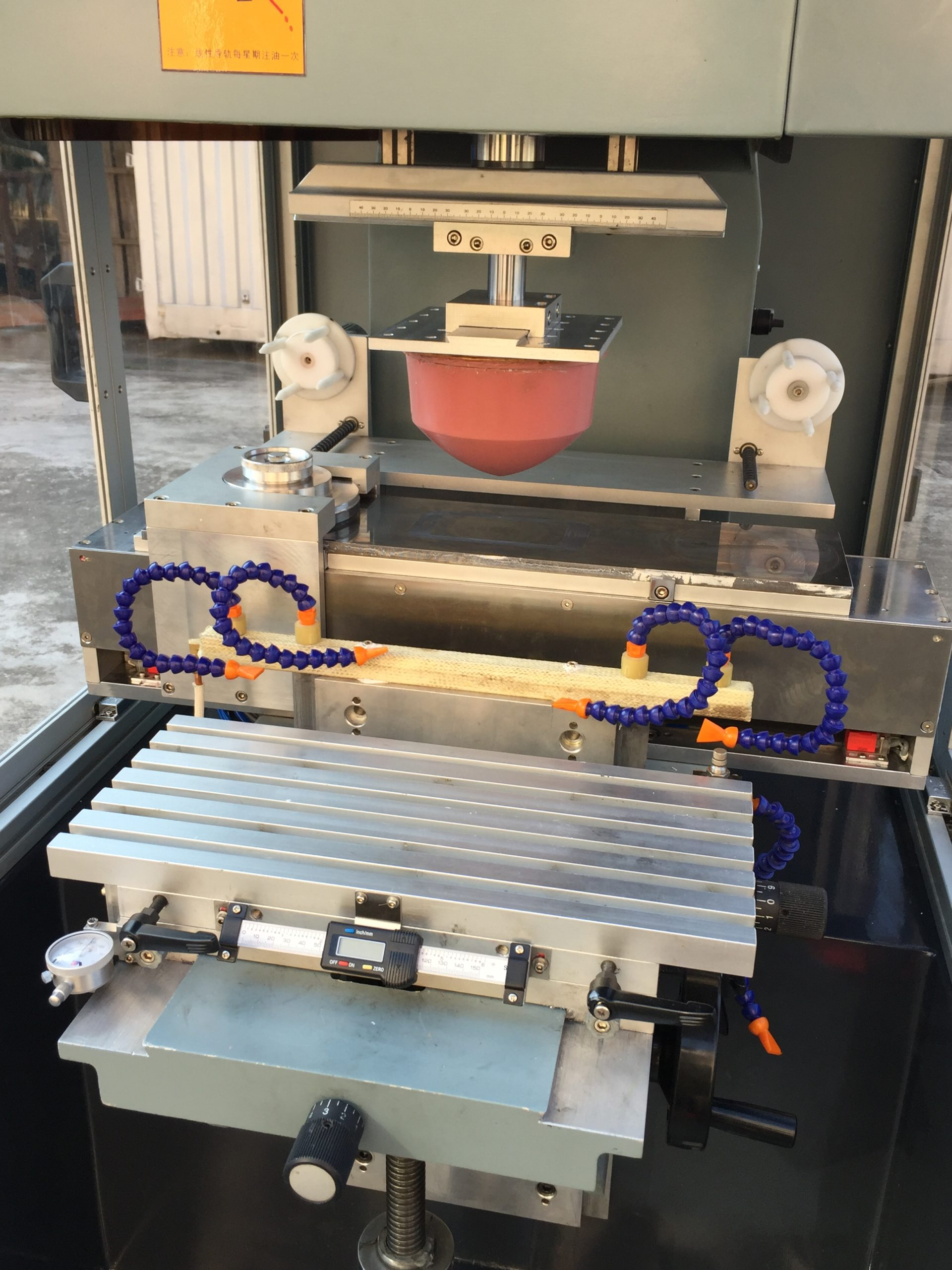

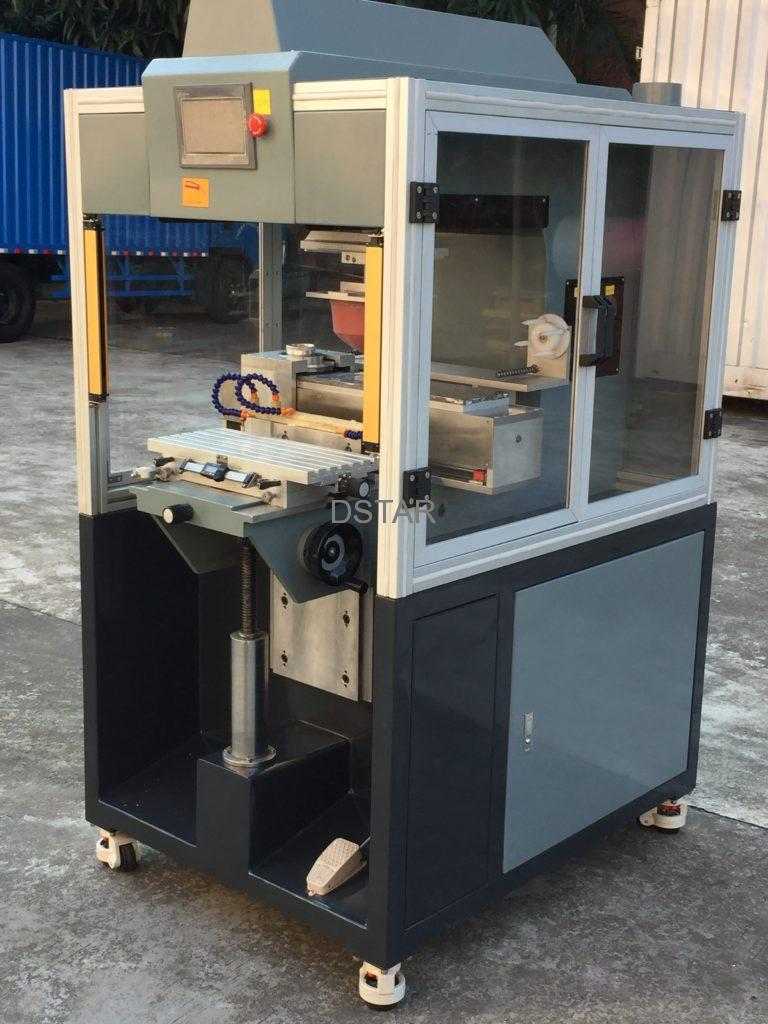

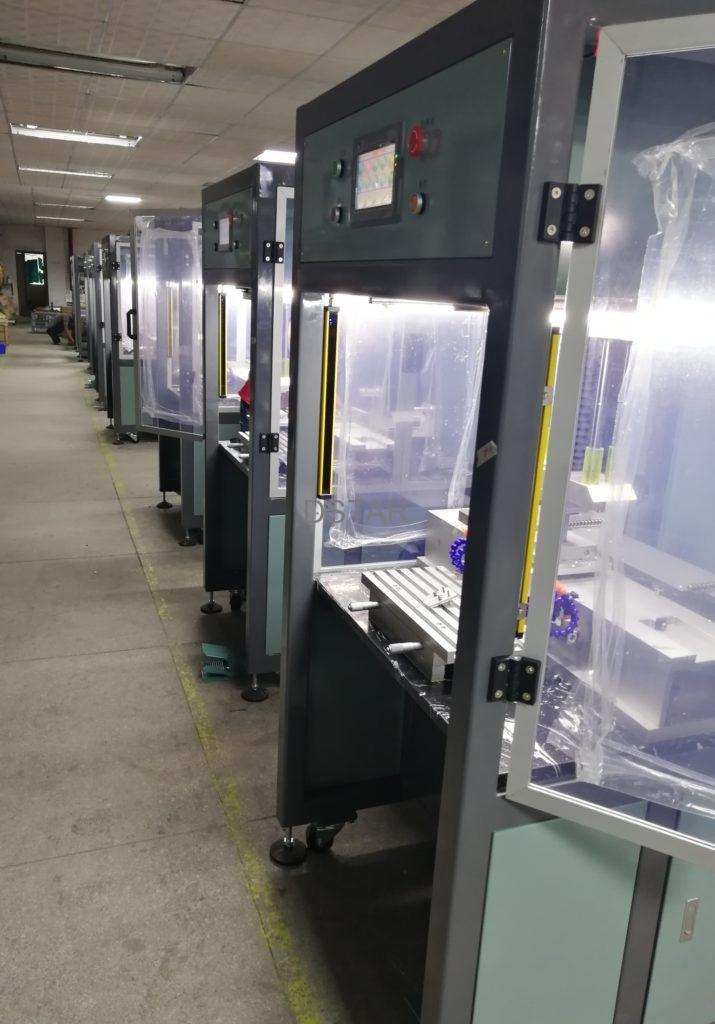

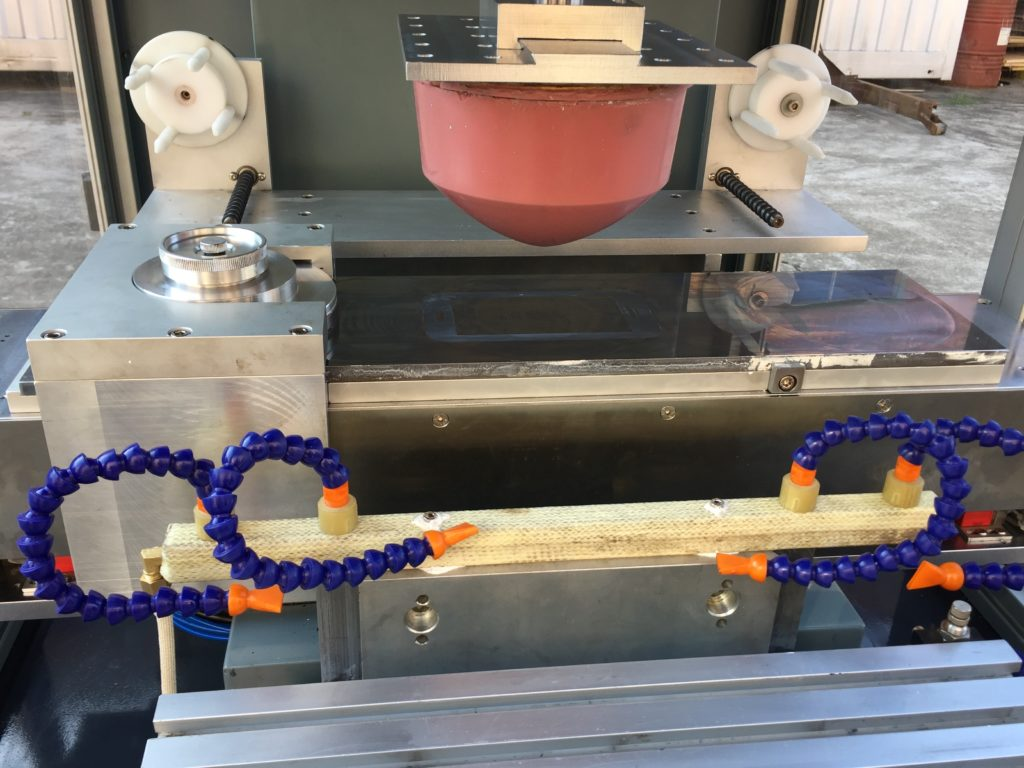

Machine Pictures
Printing Consumables
- Silicone pad
- Pad printing plate
- Ink and ink solvent
- Sealed ink cup
- Fixture

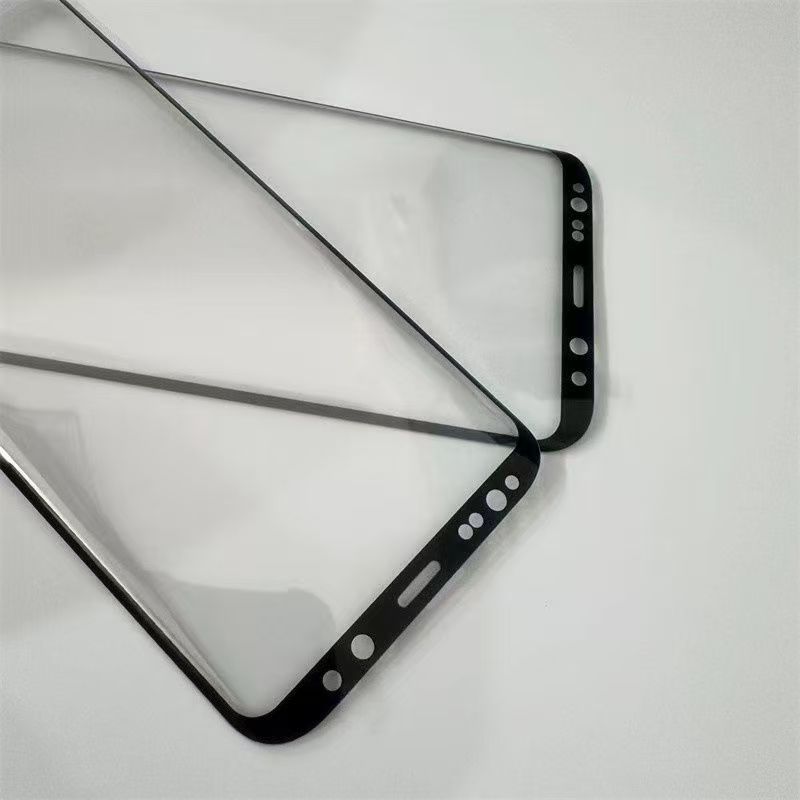

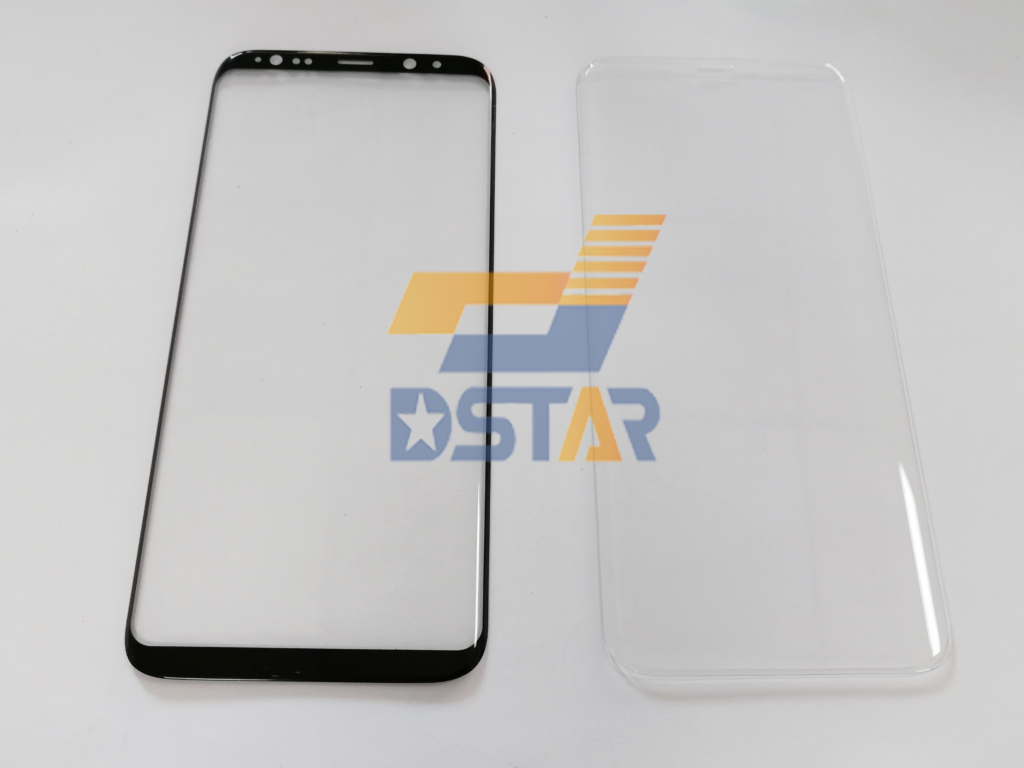

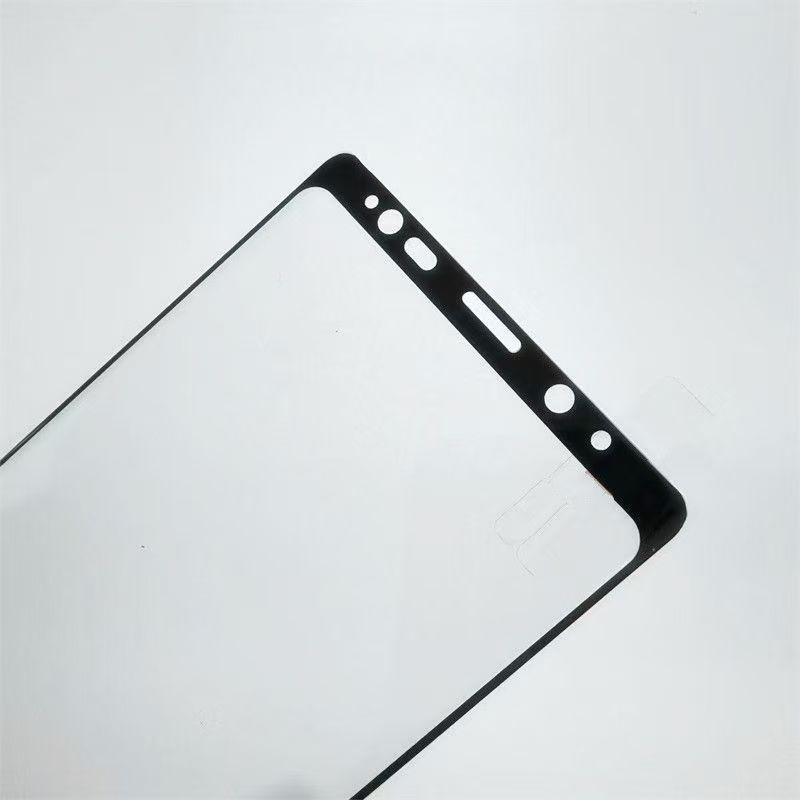

Printing Samples Display
Machine Video
Origin manufacturer
Professional and Rigorous full-process service
Welding & PaintingStable Machine Constructure frame and beautiful appearance(OEM color acceptable)
CNC processingCNC precision, micron accuracy.Every parts must be precise to ensure entire quality.
Milling ProcessingPrecision cutting of planes, grooves, gears for multi-dimensional shaping.
AssemblySystematic fitting of precision parts per blueprints to ensure structural integrity.
ProgrammingCE standard Circuit wiring, component mounting and multi language
RTSWooden case packing for shipment
PRMachine Video
FFocus On Printing Machine
TQuality & Service Exceed Expectation
LeAutomatic Printing Machine to enhance production efficiency
FAQs
What types of products can we offer?
- Pad Printing Machine
- Screen Printing Machine
- Hot Stamping Machine
- Heat Transfer Printing machine
- Dry offset printer
- Printing supplies
How many experience expericen in manufacturing?
Since year of 2004 and export business since year of 2014
Can it be customized as per our requirements?
Yes,we have technical team with rich experience to provide customization service.We can design machine according your printing requirements and functional requirements.
How long machine lead time?
Standard machine:in stock or 3-5 days
Customized automatic machine:25-60 days vary from machine detailed functions.
What is our ordering process?
Work Process
Project implementation process
1
STEP
Send Inquiry1.what product do you need?
2.if need machine,please share your printing detailed requirements.Like how much color printing,how much printing size,how much production ability.
3.sample product photo.
4.as much details as better
2
STEP
Proposal responseDSTAR company will check your inquiry and ask for related more detailed information if it’s not enough for us recommend a right machine proposal.
3
STEP
Sign ContractIf you agree with our proposal and price,we will sign contract or proforma invoice.Then buyer remit the downpayment to start order process.
4
STEP
Machine productionWe will start machine production and update status to buyer.The machine will be shipped after receiving buyer’s quality confirmation.
Have any Question?Welcome to contact us, we will reply you as soon as possible!
What services are included in the after-sales service?
- 1 Year Machine Quality Warranty since machine delivery to buyer
- Recoard detailed machine working videos before shipment
- Lifelong technical consultancy supports
- Free machine parts replacement if machine quality problem. (not include printing sumables)
What's your payment term for machine order?
- T/T bank transfer
- L/C (100% irrevocable L/C at sight for order value over USD16,000)

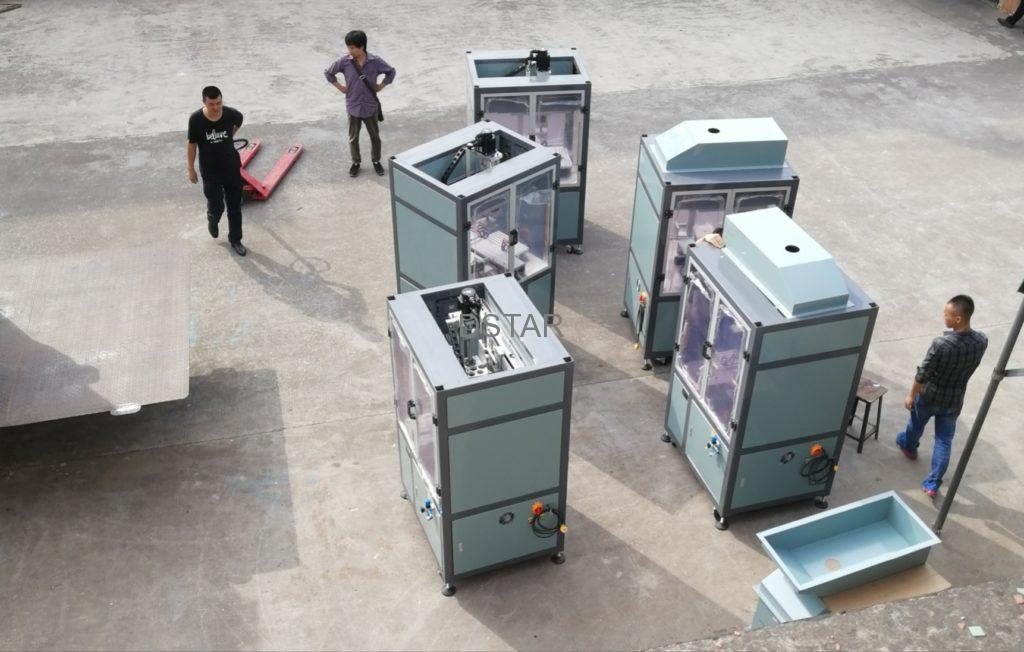

Machine packing and shipment
