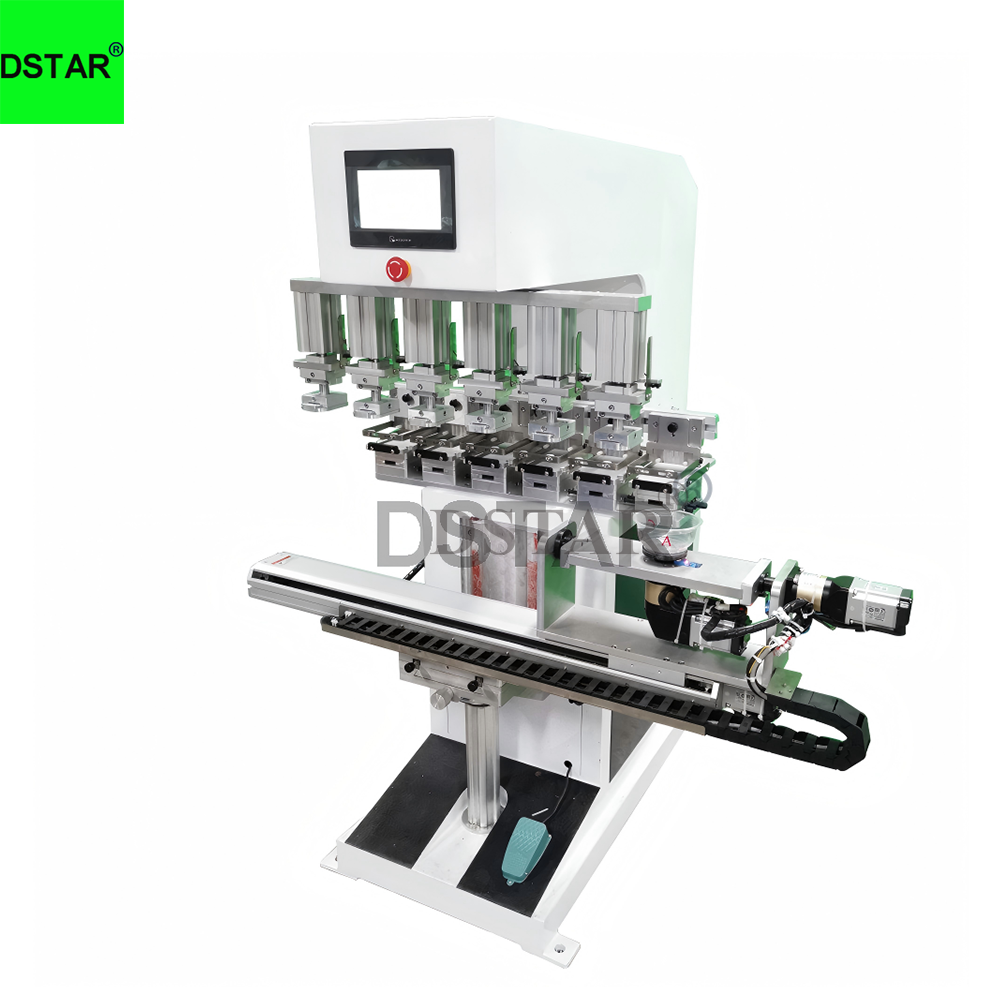

Servo Drive 6 Color Pad Printing Machine
PRODUCT PARAMETERS
Description
High Quality Servo Drive 6 Color Pad Printing Machine with Independent Silicone Pad
Machine Data Sheet
| Product | Servo Drive 6 Color Pad Printing Machine for Sale |
| Brand | DSTAR |
| Model | DX-SM6S-90 |
| Printing color | 6 color |
| Ink scrapping | sealed ink cup |
| Printing plate size | 0.5*100*250mm |
| Ink cup diameter | φ90mm |
| Power | AC220V/50Hz/2KW/1 Phase |
| Silicone pad F/B | Servo Drive |
| Slidding shuttle | Servo Drive |
| Fixture rotate and angle | Servo Drive |
| N.W | 380KGS |
| Machine size | L100*W96*H150cm |
Machine Features
- Independent Servo-Driven Pad Forward/Backward The forward and backward stroke of each pad is independently adjustable, allowing flexible setting of ink pickup and printing positions according to different patterns and workpiece sizes. It has strong adaptability, reduces mutual interference during multi-color printing, and improves overprinting accuracy.
- Servo-Driven Shuttle Worktable System The worktable is driven by a servo motor with a ball screw drive, ensuring precise and controllable shuttle positions with minimal positioning error. It guarantees color registration accuracy for 6-color printing, supports quick changeover of different workpieces, and effectively improves production efficiency.
- 2-Axis Servo Rotating Fixture System Equipped with a 2-axis servo rotating fixture, it enables precise 0-360° rotational positioning of workpieces, perfectly adapting to circumferential/curved surface printing of special-shaped workpieces such as cylinders, cones, and arcs, solving the multi-angle and curved surface printing problems that traditional pad printers cannot achieve.
- Sealed Ink Cup Inking System Adopts a sealed ink cup for inking, which prevents ink volatilization, maintains stable ink concentration, ensures consistent printing quality, reduces ink waste and environmental pollution, and facilitates easy maintenance.
- Intelligent Touch Control System Equipped with an industrial-grade color touch screen with multi-language interface. All parameters (printing speed, pad pressure, rotation angle, etc.) can be set intuitively. It is easy to operate, and the built-in self-diagnosis function facilitates quick maintenance.
- Stable and Durable Mechanical Structure The machine body is made of high-strength aluminum alloy/steel, with key pneumatic components from well-known brands. It runs stably and reliably, suitable for long-term continuous industrial production scenarios.
Printing Consumables
- Pad printing plate
- Silicone pad
- Ink cup
- Pad printing ink & ink thinner
- Customized fixture
Machine Video
Origin manufacturer
Professional and Rigorous full-process service
Welding & PaintingStable Machine Constructure frame and beautiful appearance(OEM color acceptable)
CNC processingCNC precision, micron accuracy.Every parts must be precise to ensure entire quality.
Milling ProcessingPrecision cutting of planes, grooves, gears for multi-dimensional shaping.
AssemblySystematic fitting of precision parts per blueprints to ensure structural integrity.
ProgrammingCE standard Circuit wiring, component mounting and multi language
RTSWooden case packing for shipment
PRMachine Video
FFocus On Printing Machine
TQuality & Service Exceed Expectation
LeAutomatic Printing Machine to enhance production efficiency
FAQs
What types of products can we offer?
- Pad Printing Machine
- Screen Printing Machine
- Hot Stamping Machine
- Heat Transfer Printing machine
- Dry offset printer
- Printing supplies
How many experience expericen in manufacturing?
Since year of 2004 and export business since year of 2014
Can it be customized as per our requirements?
Yes,we have technical team with rich experience to provide customization service.We can design machine according your printing requirements and functional requirements.
How long machine lead time?
Standard machine:in stock or 3-5 days
Customized automatic machine:25-60 days vary from machine detailed functions.
What is our ordering process?
Work Process
Project implementation process
1
STEP
Send Inquiry1.what product do you need?
2.if need machine,please share your printing detailed requirements.Like how much color printing,how much printing size,how much production ability.
3.sample product photo.
4.as much details as better
2
STEP
Proposal responseDSTAR company will check your inquiry and ask for related more detailed information if it’s not enough for us recommend a right machine proposal.
3
STEP
Sign ContractIf you agree with our proposal and price,we will sign contract or proforma invoice.Then buyer remit the downpayment to start order process.
4
STEP
Machine productionWe will start machine production and update status to buyer.The machine will be shipped after receiving buyer’s quality confirmation.
Have any Question?Welcome to contact us, we will reply you as soon as possible!
What services are included in the after-sales service?
- 1 Year Machine Quality Warranty since machine delivery to buyer
- Recoard detailed machine working videos before shipment
- Lifelong technical consultancy supports
- Free machine parts replacement if machine quality problem. (not include printing sumables)
What's your payment term for machine order?
- T/T bank transfer
- L/C (100% irrevocable L/C at sight for order value over USD16,000)
Machine packing and shipment
