Automatic Printing Machine Manufacturer
2 Color Pad Printing Machine with Automatic Silicone Pad Cleaning
PRODUCT PARAMETERS
Description

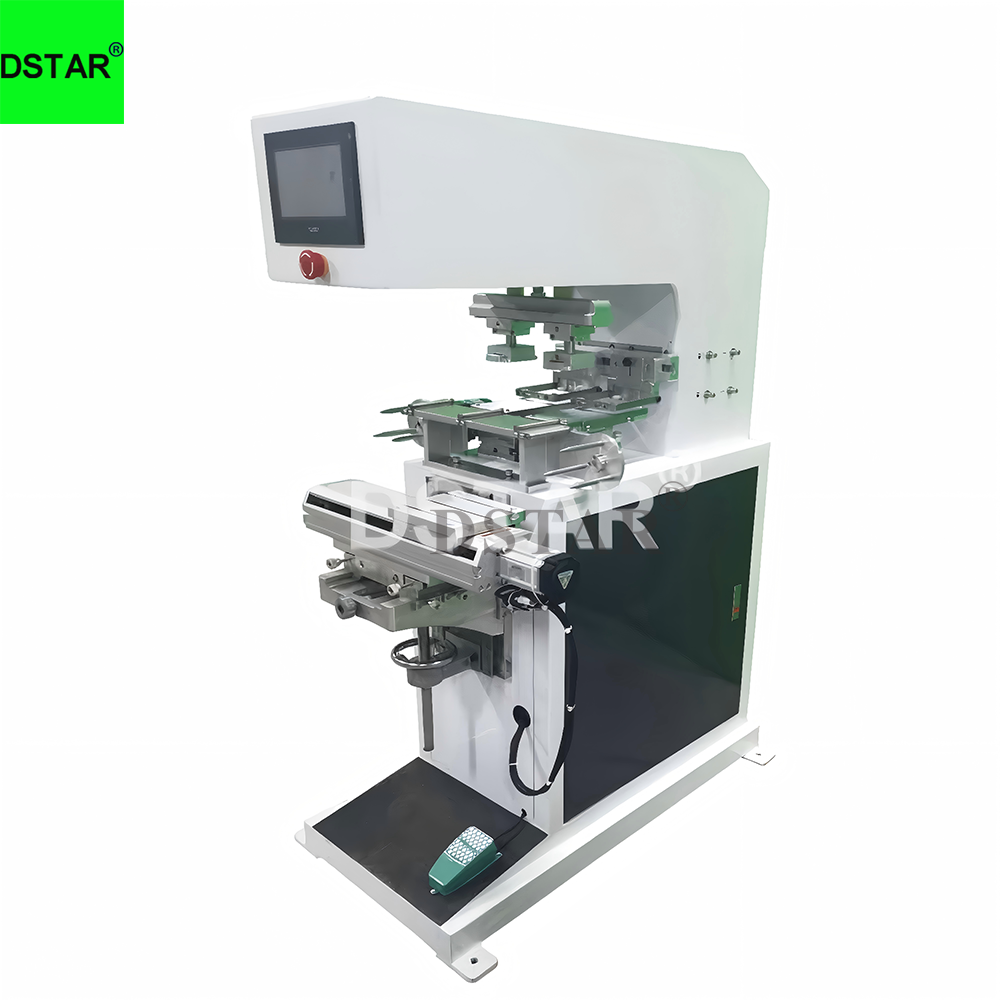

Servo 2 Color Pad Printing Machine with Automatic Silicone Pad Cleaning
Machine Data Sheet
| Product | 2 Color Pad Printing Machine with Automatic Silicone Pad Cleaning |
| Brand | DSTAR |
| Model | DX-SP2S-90 |
| Printing color | 2 color |
| Printing plate size | 0.5*100*220mm |
| Ink cup diameter | φ90mm |
| F/B Stroke | 200mm |
| U/D Stroke | 75mm |
| Central stroke | 150mm |
| Printing speed | 1200 cycles/hr |
| Work table Z adjustable height | 200mm |
| Power | AC220V/1Phase/850W |
| Air supply | 0.5-0.7Mpa |
| N.W | 200KGS |
| Machine size | L950*W650*H1350mm |
Machine Features
- The silicone pad moves forward and backward, driven by a servo motor
- The workbench shuttle cart is driven by a servo motor, and the horizontal travel distance can be customized via the Human-Machine Interface (HMI).
- The automatic silicone pad cleaning function allows the cleaning frequency to be set on the human-machine interface (HMI) according to printing requirements.
- Panasonic PLC system and 7-inch HMI touch screen
- The UP and Down printing stroke of the silicone pad is adjustable
- The workbench can be adjusted to X, Y, Z, R

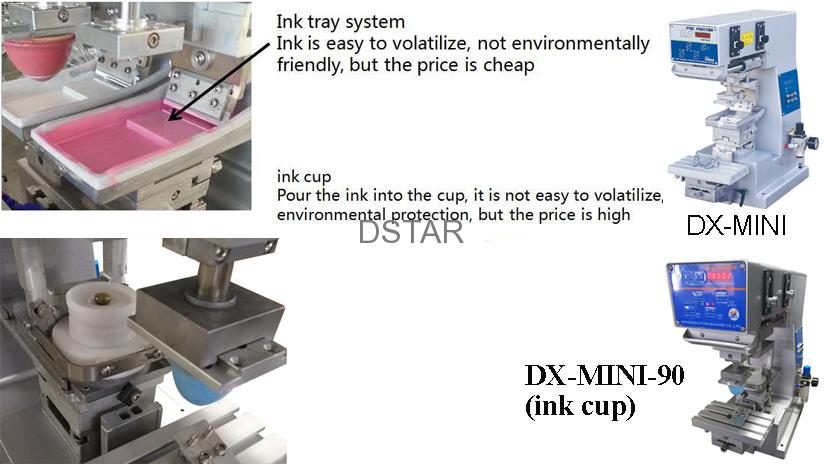

- The sealed ink cup is environmentally friendly and saves ink while being durable.
Printing Consumables
- Silicone pad
- Pad printing plate
- Printing ink and ink solvent
- Ink cup
- Fixture
Origin manufacturer
Professional and Rigorous full-process service
Welding & PaintingStable Machine Constructure frame and beautiful appearance(OEM color acceptable)
CNC processingCNC precision, micron accuracy.Every parts must be precise to ensure entire quality.
Milling ProcessingPrecision cutting of planes, grooves, gears for multi-dimensional shaping.
AssemblySystematic fitting of precision parts per blueprints to ensure structural integrity.
ProgrammingCE standard Circuit wiring, component mounting and multi language
RTSWooden case packing for shipment
PRMachine Video
FFocus On Printing Machine
TQuality & Service Exceed Expectation
LeAutomatic Printing Machine to enhance production efficiency
FAQs
What types of products can we offer?
- Pad Printing Machine
- Screen Printing Machine
- Hot Stamping Machine
- Heat Transfer Printing machine
- Dry offset printer
- Printing supplies
How many experience expericen in manufacturing?
Since year of 2004 and export business since year of 2014
Can it be customized as per our requirements?
Yes,we have technical team with rich experience to provide customization service.We can design machine according your printing requirements and functional requirements.
How long machine lead time?
Standard machine:in stock or 3-5 days
Customized automatic machine:25-60 days vary from machine detailed functions.
What is our ordering process?
Work Process
Project implementation process
1
STEP
Send Inquiry1.what product do you need?
2.if need machine,please share your printing detailed requirements.Like how much color printing,how much printing size,how much production ability.
3.sample product photo.
4.as much details as better
2
STEP
Proposal responseDSTAR company will check your inquiry and ask for related more detailed information if it’s not enough for us recommend a right machine proposal.
3
STEP
Sign ContractIf you agree with our proposal and price,we will sign contract or proforma invoice.Then buyer remit the downpayment to start order process.
4
STEP
Machine productionWe will start machine production and update status to buyer.The machine will be shipped after receiving buyer’s quality confirmation.
Have any Question?Welcome to contact us, we will reply you as soon as possible!
What services are included in the after-sales service?
- 1 Year Machine Quality Warranty since machine delivery to buyer
- Recoard detailed machine working videos before shipment
- Lifelong technical consultancy supports
- Free machine parts replacement if machine quality problem. (not include printing sumables)
What's your payment term for machine order?
- T/T bank transfer
- L/C (100% irrevocable L/C at sight for order value over USD16,000)
Machine packing and shipment
