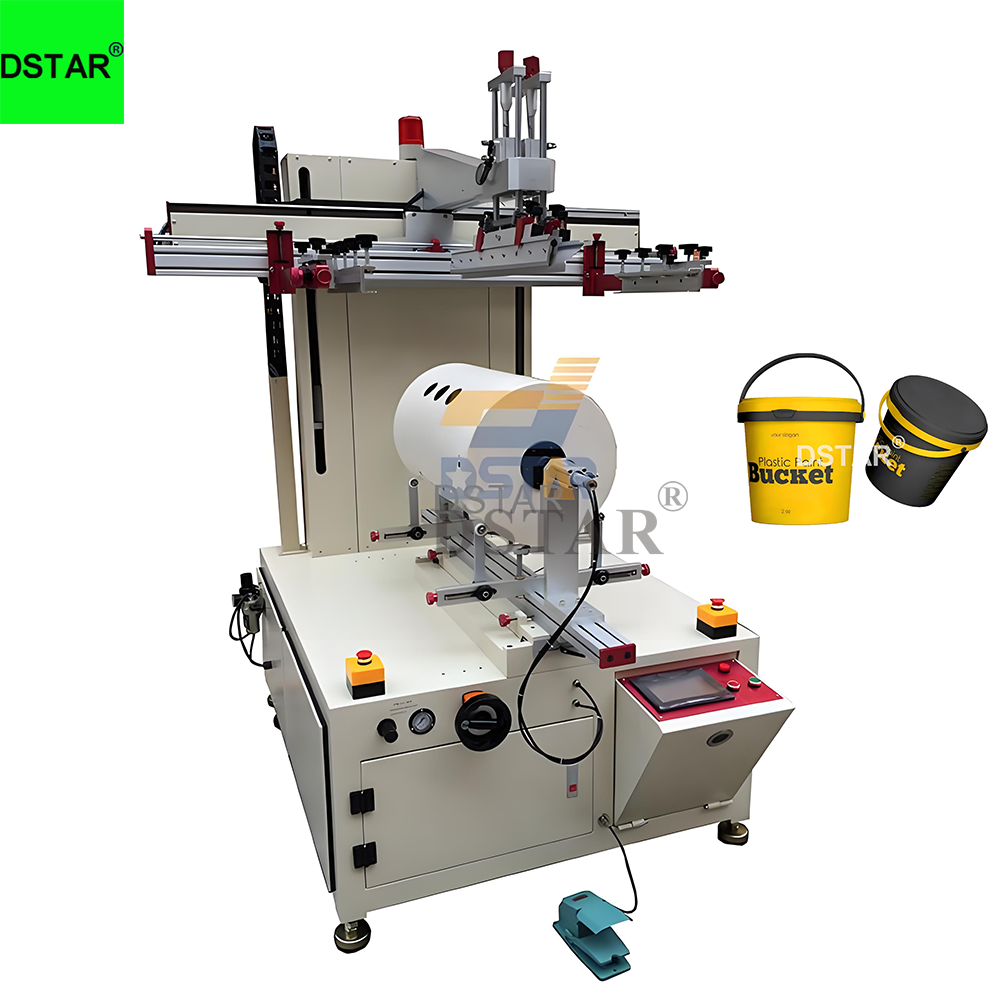

Servo Motor Bucket Curved Screen Printing Machine

High Quality Servo Motor Bucket Curved Screen Printing Machine with Factory Price

Machine Data Sheet

The Servo Motor Bucket Curved Screen Printing Machine is a state-of-the-art solution that provides exceptional printing quality and efficiency. This machine is ideal for businesses looking to enhance their production capabilities while maintaining cost-effectiveness. The advanced technology incorporated in the machine not only improves printing speed but also ensures high accuracy, making it suitable for a wide range of applications including textiles, packaging, and promotional materials.

One of the standout features of this machine is its ability to handle various substrates, from plastics to fabrics, which broadens the scope of products that can be printed. The servo motor technology enables consistent performance, reducing downtime and maintenance costs. This flexibility is especially beneficial for businesses that require adaptability in their production line.

Machine Features

Additionally, the Servo Motor Bucket Curved Screen Printing Machine is designed with energy efficiency in mind, consuming less power compared to traditional screen printing machines. This is not only advantageous for reducing operational costs but also contributes to a more sustainable production process.

1. This equipment is a semi-automatic electric screen printing machine.
2. It features a digital control system with a touchscreen interface for easy operation and quick modification of printing programs. Driven by dual-axis servo motors, it offers high repeatability and high-speed operation, resulting in superior print quality.
3. All motion guides utilize precision linear guide rails.
4. The printing mechanism employs a vertical lift design, facilitating easy maintenance of the screen and squeegee.
5. The printing drive system utilizes a servo motor combined with a synchronous belt and linear guide rail transmission.
6. The screen assembly features micro-adjustment capabilities for front-to-back, left-to-right, and planar tilt alignment, allowing for rapid machine setup.
7. The squeegee is equipped with a constant-pressure mechanism to ensure uniform printing pressure and is driven by a motor.
8. Registration accuracy is maintained within ±0.1mm. The machine uses pneumatic components from renowned brands; moving parts are fitted with precision hardened steel shafts and bearings to ensure smooth operation and wear resistance.
9. Parameters such as the squeegee, flood bar, air pressure, speed, balance, and stroke are easily adjustable to meet diverse printing requirements.
10. It offers three operating modes: manual, semi-automatic, and automatic.

Machine Technical Components

1. The machine utilizes a (Panasonic) PLC and touchscreen control system.
2. The electrical system incorporates LIRRD relays, Shihlin (Taiwan) AC contactors, and F&C (Taiwan) photoelectric switches.
3. The printing action is driven by a (Panasonic) servo motor.
4. The squeegee and flood bar are controlled by pneumatic components from renowned brands.
5. The horizontal (left-right) squeegee mechanism employs Hiwin (Taiwan) linear guide rails.
6. The rotation of the product fixture is driven by a (Panasonic) servo motor.

Printing Consumables

• Squeegee
• Screen printing plate
• Printing ink and ink solvent
• Fixture

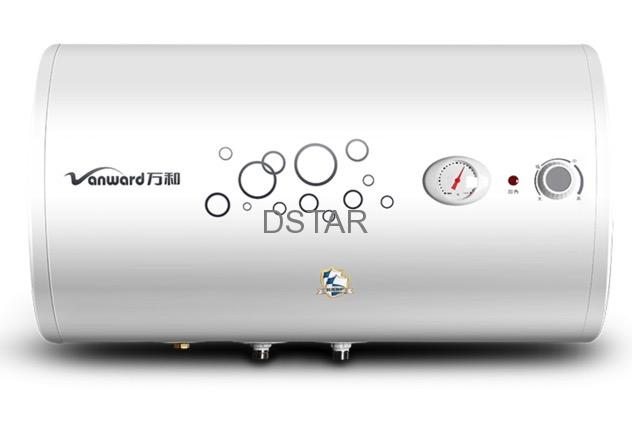

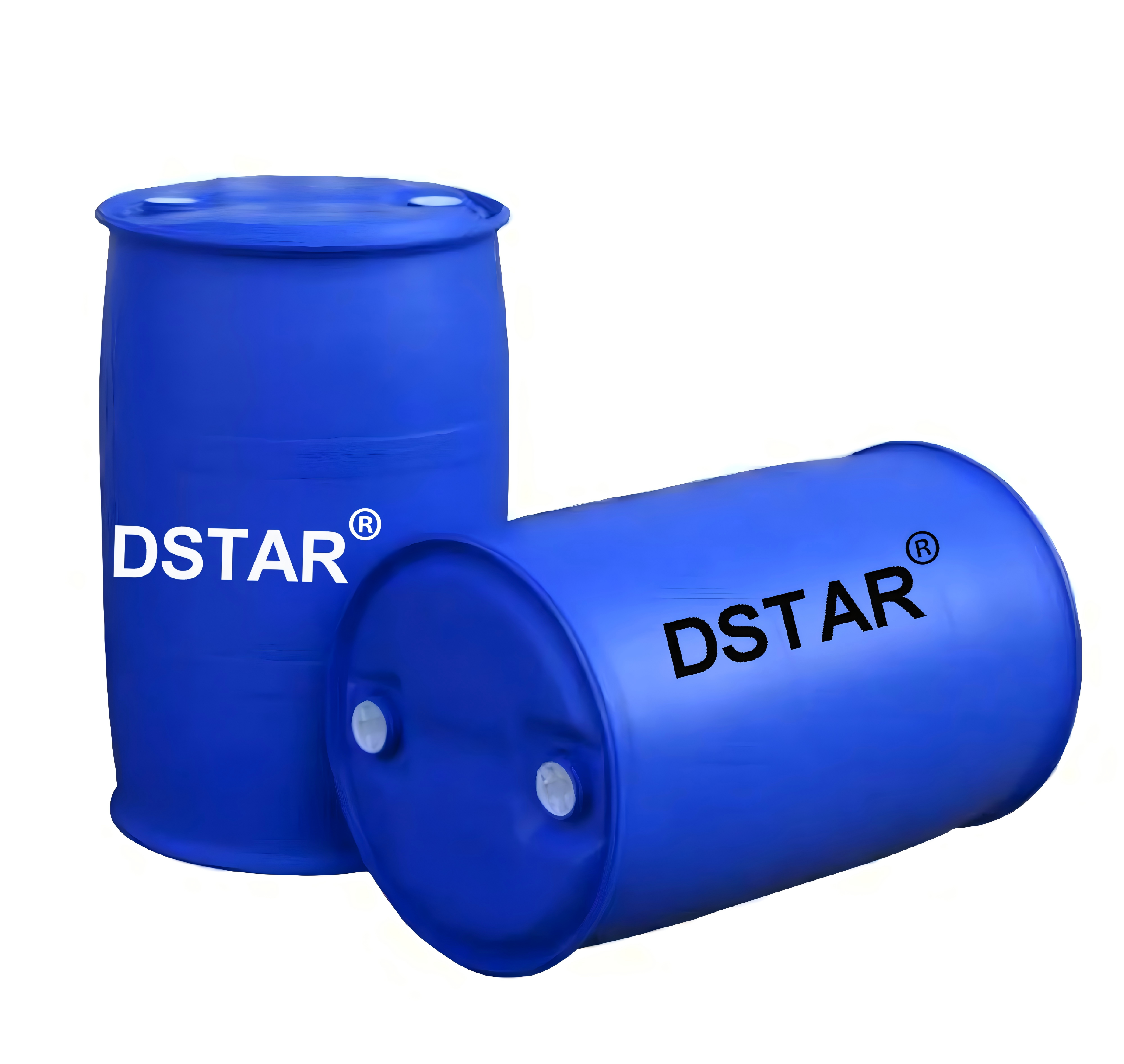

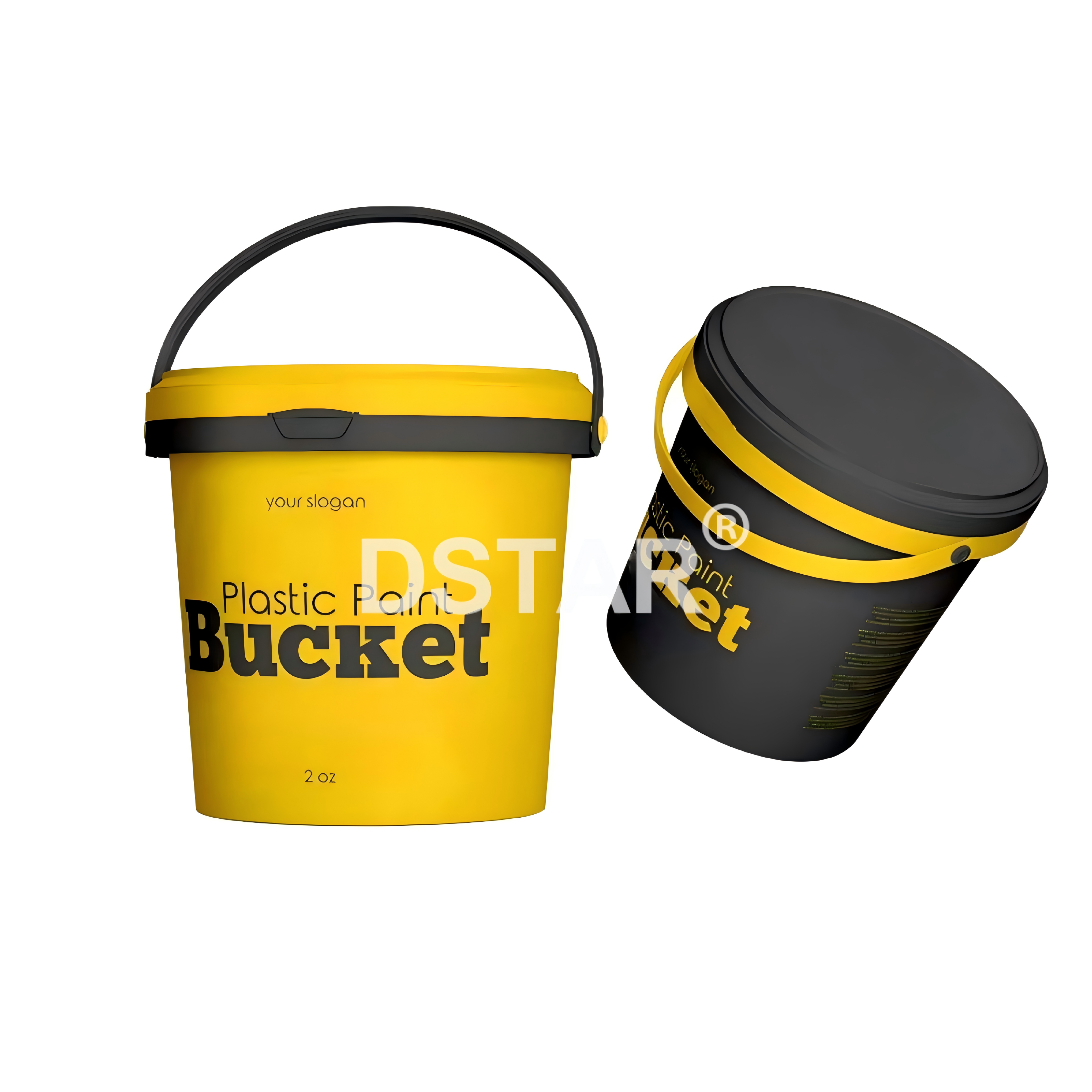

Printing Samples Display

Within the machine, advanced sensors monitor the printing process, ensuring that any discrepancies are quickly identified and corrected. This feature significantly enhances the reliability of the printing process and guarantees high-quality output with minimal waste.

The printing samples displayed by the Servo Motor Bucket Curved Screen Printing Machine showcase its versatility and quality. From vibrant color reproduction to precise detailing, the results speak for themselves, demonstrating why this machine is becoming the preferred choice among industry professionals.

For businesses seeking to invest in a reliable and efficient printing solution, the Servo Motor Bucket Curved Screen Printing Machine represents a smart choice. Its combination of advanced features, cost-effectiveness, and adaptability ensures that it meets the demands of a rapidly evolving market.

In conclusion, the Servo Motor Bucket Curved Screen Printing Machine not only enhances production efficiency but also ensures quality and adaptability. As businesses continue to strive for excellence in their production capabilities, investing in such innovative technology becomes a crucial aspect of staying competitive in the market.
