Automatic Printing Machine Manufacturer

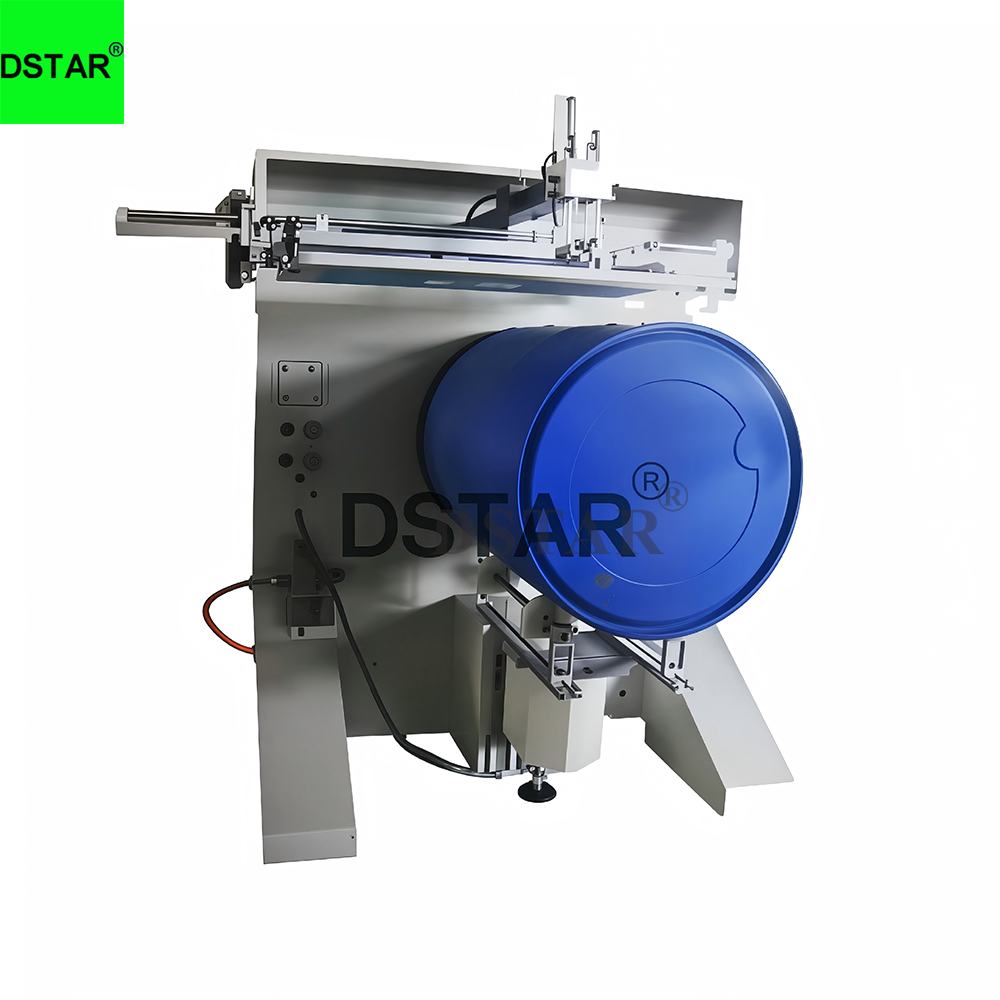

Metal Plastic Gallon Bucket Screen Printing Machine
PRODUCT PARAMETERS
Description
DSTAR Customized Metal Plastic Gallon Bucket Screen Printing Machine for Sale
Machine Data Sheet
| Product | Metal Plastic Gallon Bucket Screen Printing Machine |
| Brand | DSTAR |
| Model | DX-SPM1100 |
| Printing color | 1 color |
| Max printing area | 1000*350mm |
| Max adjustable height | 1000mm |
| Printing speed | 600pcs/hr |
| Max product diameter | 350mm |
| Voltage | AC220V/50Hz |
| Net Weight | 350KG |
| Dimensions(LWH) | L185*W95*H180cm |
Machine Features
- Printing Precision & Adjustment:The angle, pressure, and stroke of both the squeegee and ink scraper can be independently adjusted. This ensures uniform ink transfer through the mesh onto the barrel surface, guaranteeing sharp text/pattern edges and a thick ink layer.
- Applicable Materials & Inks:Widely applicable to chemical barrels, paint buckets, and food-grade gallon barrels made of plastics & metal. Compatible with various ink types including solvent-based and UV inks. Adhesion can be significantly improved when paired with flame or corona treatment on plastic bucket (optional).
- Specialized Fixture System:Equipped with a rotating fixture specifically designed for gallon barrels,ensuring the barrel rotates synchronously during the printing process to achieve seamless cylindrical printing and prevent slipping or deformation.
- Applicable Scope:It is suitable for gallon barrels of various materials, including cylindrical containers made of plastic, metal and other materials. At the same time, it can also be used for single – color screen printing of other similar cylindrical, oval products, such as beverage bottles, cosmetic bottles, filters, cans, etc.
Printing Consumables
- 1.Screen printing ink
- 2.Squeegee
- 3.Screen printing plate
- 4.Fixture
Printing Samples Display
Origin manufacturer
Professional and Rigorous full-process service
Welding & PaintingStable Machine Constructure frame and beautiful appearance(OEM color acceptable)
CNC processingCNC precision, micron accuracy.Every parts must be precise to ensure entire quality.
Milling ProcessingPrecision cutting of planes, grooves, gears for multi-dimensional shaping.
AssemblySystematic fitting of precision parts per blueprints to ensure structural integrity.
ProgrammingCE standard Circuit wiring, component mounting and multi language
RTSWooden case packing for shipment
PRMachine Video
FFocus On Printing Machine
TQuality & Service Exceed Expectation
LeAutomatic Printing Machine to enhance production efficiency
FAQs
What types of products can we offer?
- Pad Printing Machine
- Screen Printing Machine
- Hot Stamping Machine
- Heat Transfer Printing machine
- Dry offset printer
- Printing supplies
How many experience expericen in manufacturing?
Since year of 2004 and export business since year of 2014
Can it be customized as per our requirements?
Yes,we have technical team with rich experience to provide customization service.We can design machine according your printing requirements and functional requirements.
How long machine lead time?
Standard machine:in stock or 3-5 days
Customized automatic machine:25-60 days vary from machine detailed functions.
What is our ordering process?
Work Process
Project implementation process
1
STEP
Send Inquiry1.what product do you need?
2.if need machine,please share your printing detailed requirements.Like how much color printing,how much printing size,how much production ability.
3.sample product photo.
4.as much details as better
2
STEP
Proposal responseDSTAR company will check your inquiry and ask for related more detailed information if it’s not enough for us recommend a right machine proposal.
3
STEP
Sign ContractIf you agree with our proposal and price,we will sign contract or proforma invoice.Then buyer remit the downpayment to start order process.
4
STEP
Machine productionWe will start machine production and update status to buyer.The machine will be shipped after receiving buyer’s quality confirmation.
Have any Question?Welcome to contact us, we will reply you as soon as possible!
What services are included in the after-sales service?
- 1 Year Machine Quality Warranty since machine delivery to buyer
- Recoard detailed machine working videos before shipment
- Lifelong technical consultancy supports
- Free machine parts replacement if machine quality problem. (not include printing sumables)
What's your payment term for machine order?
- T/T bank transfer
- L/C (100% irrevocable L/C at sight for order value over USD16,000)
Machine packing and shipment
