Customized Screen Printing Machine with CCD System
PRODUCT PARAMETERS
Description

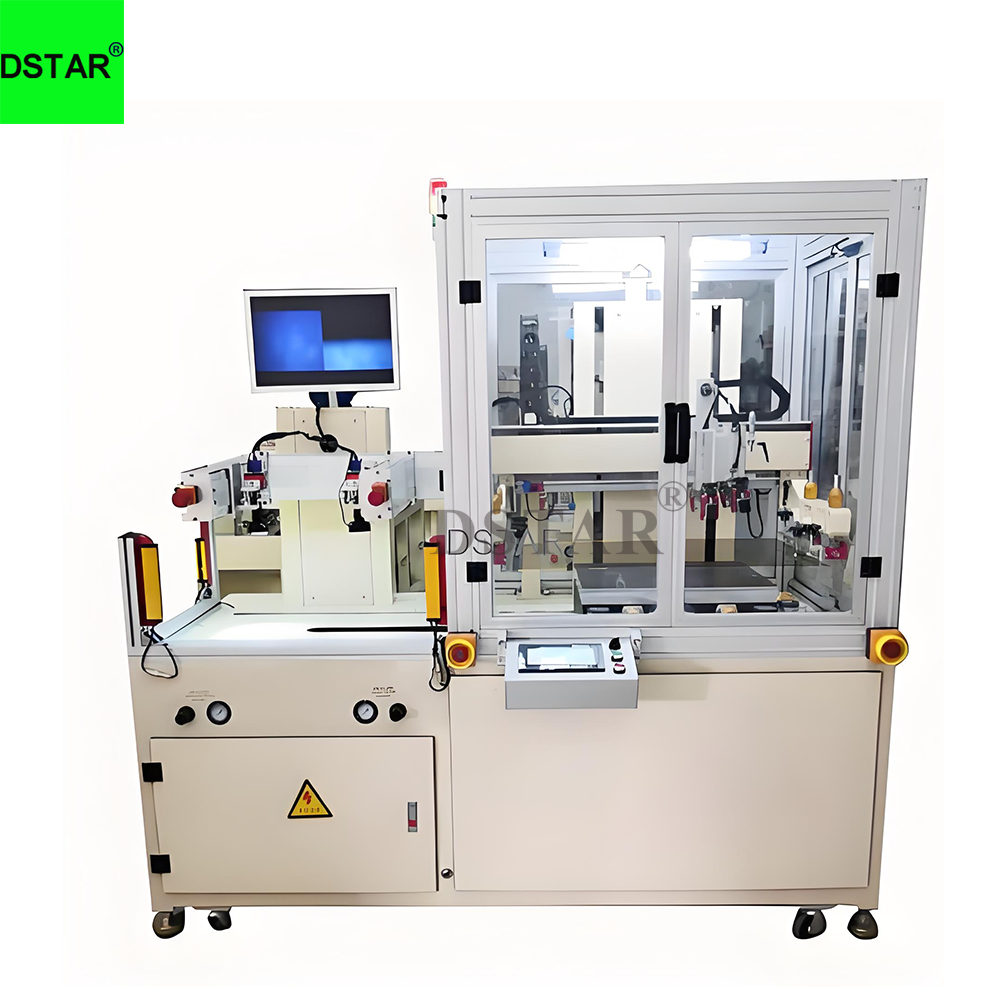

DX-5060CCD Customized Screen Printing Machine with CCD System from DSTAR
Machine Data Sheet
| Product | Screen printing machine with CCD system |
| Brand | DSTAR |
| Model | DX-5060CCD |
| Max printing plate size | 450x550mm |
| Worktable size | 500x600mm |
| Maximum frame size | 600x800mm |
| Workpiece thickness | 0-60mm |
| Printing speed | 800times/hr |
| Air supply | 0.4-0.6Mpa |
| Voltage | 220V |
Machine Features
- Features a vertical lifting structure. Both the screen frame lifting and the left-to-right movement of the print head are electrically driven.
- Equipped with a single chip microcomputer control circuit to enable intelligent control of printing and screen handling operations.
- Employs pneumatic control for the vertical movement of the print carriage; the printing stroke is controlled via a photoelectric sensor and supports independent adjustment.
- Offers three operating modes—Manual, Semi-automatic, and Fully Automatic-to facilitate flexible control over the printing process.
- Allows for selectable multi-pass printing (1 to 3 passes) to accommodate varying requirements for ink layer thickness.
- Features a dedicated print head lifting mechanism to facilitate easy access for the operation and adjustment of the squeegee, flood bar, and screen frame.
- Equipped with a dual-guide-post system and adjustable left/right screen clamping arms, ensuring simple operation and precise adjustment.
- Incorporates a dual-layer safety protection system to ensure the personal safety of the operator.
- An optional CCD vision system is available to enable automatic positioning capabilities.
Printing Consumables
- Screen printing plate
- Screen printing ink & ink thinner
- Squeegee

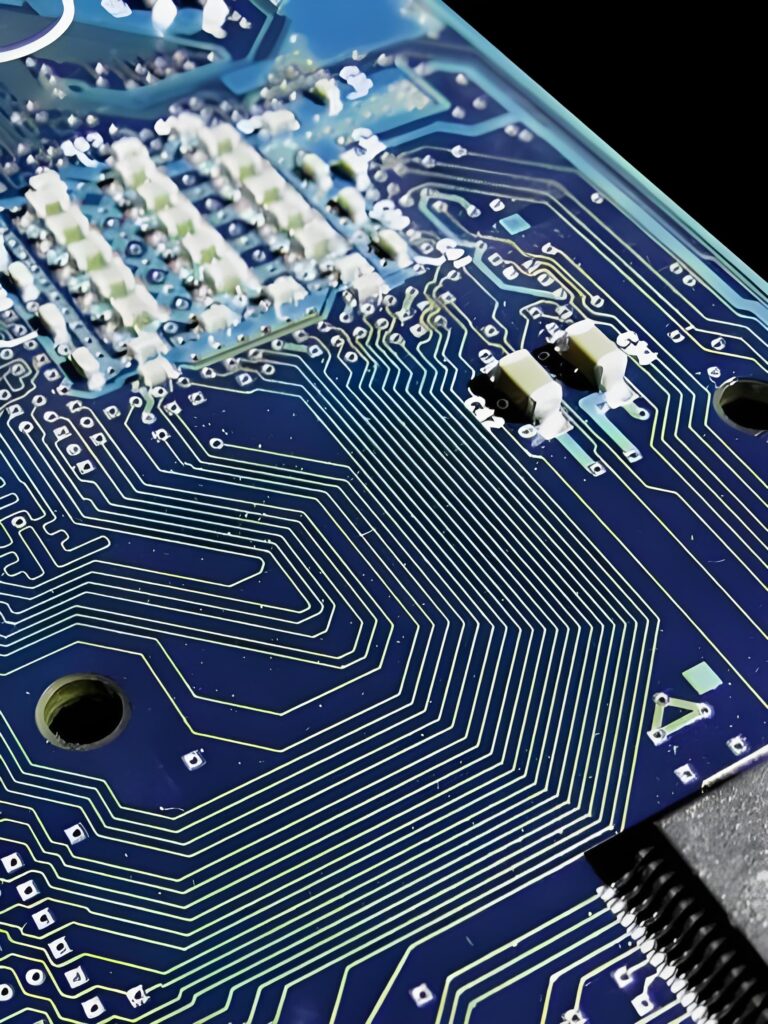

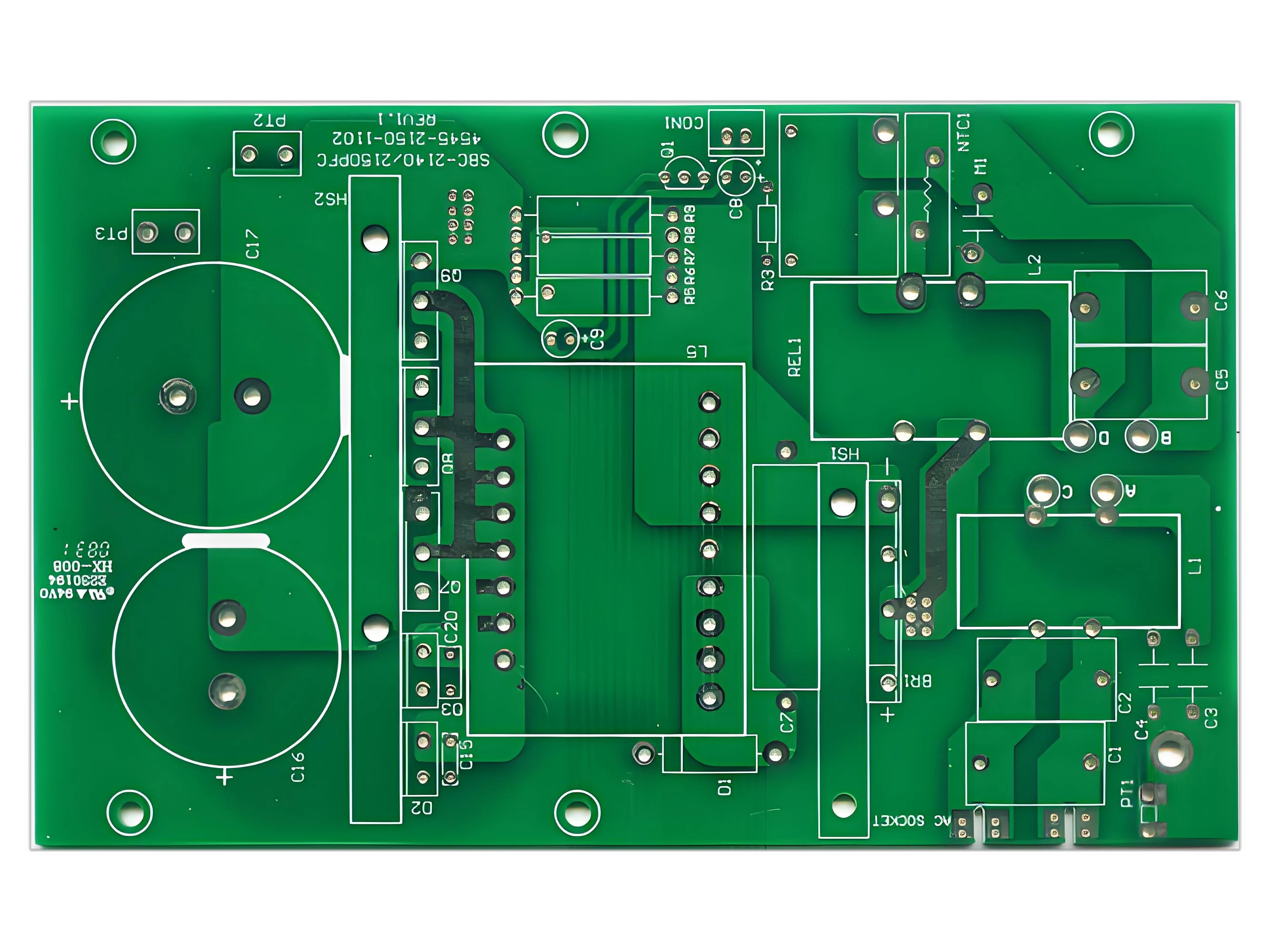

Printing Samples
Machine Video
Origin manufacturer
Professional and Rigorous full-process service
Welding & PaintingStable Machine Constructure frame and beautiful appearance(OEM color acceptable)
CNC processingCNC precision, micron accuracy.Every parts must be precise to ensure entire quality.
Milling ProcessingPrecision cutting of planes, grooves, gears for multi-dimensional shaping.
AssemblySystematic fitting of precision parts per blueprints to ensure structural integrity.
ProgrammingCE standard Circuit wiring, component mounting and multi language
RTSWooden case packing for shipment
PRMachine Video
FFocus On Printing Machine
TQuality & Service Exceed Expectation
LeAutomatic Printing Machine to enhance production efficiency
FAQs
What types of products can we offer?
- Pad Printing Machine
- Screen Printing Machine
- Hot Stamping Machine
- Heat Transfer Printing machine
- Dry offset printer
- Printing supplies
How many experience expericen in manufacturing?
Since year of 2004 and export business since year of 2014
Can it be customized as per our requirements?
Yes,we have technical team with rich experience to provide customization service.We can design machine according your printing requirements and functional requirements.
How long machine lead time?
Standard machine:in stock or 3-5 days
Customized automatic machine:25-60 days vary from machine detailed functions.
What is our ordering process?
Work Process
Project implementation process
1
STEP
Send Inquiry1.what product do you need?
2.if need machine,please share your printing detailed requirements.Like how much color printing,how much printing size,how much production ability.
3.sample product photo.
4.as much details as better
2
STEP
Proposal responseDSTAR company will check your inquiry and ask for related more detailed information if it’s not enough for us recommend a right machine proposal.
3
STEP
Sign ContractIf you agree with our proposal and price,we will sign contract or proforma invoice.Then buyer remit the downpayment to start order process.
4
STEP
Machine productionWe will start machine production and update status to buyer.The machine will be shipped after receiving buyer’s quality confirmation.
Have any Question?Welcome to contact us, we will reply you as soon as possible!
What services are included in the after-sales service?
- 1 Year Machine Quality Warranty since machine delivery to buyer
- Recoard detailed machine working videos before shipment
- Lifelong technical consultancy supports
- Free machine parts replacement if machine quality problem. (not include printing sumables)
What's your payment term for machine order?
- T/T bank transfer
- L/C (100% irrevocable L/C at sight for order value over USD16,000)
Machine packing and shipment
