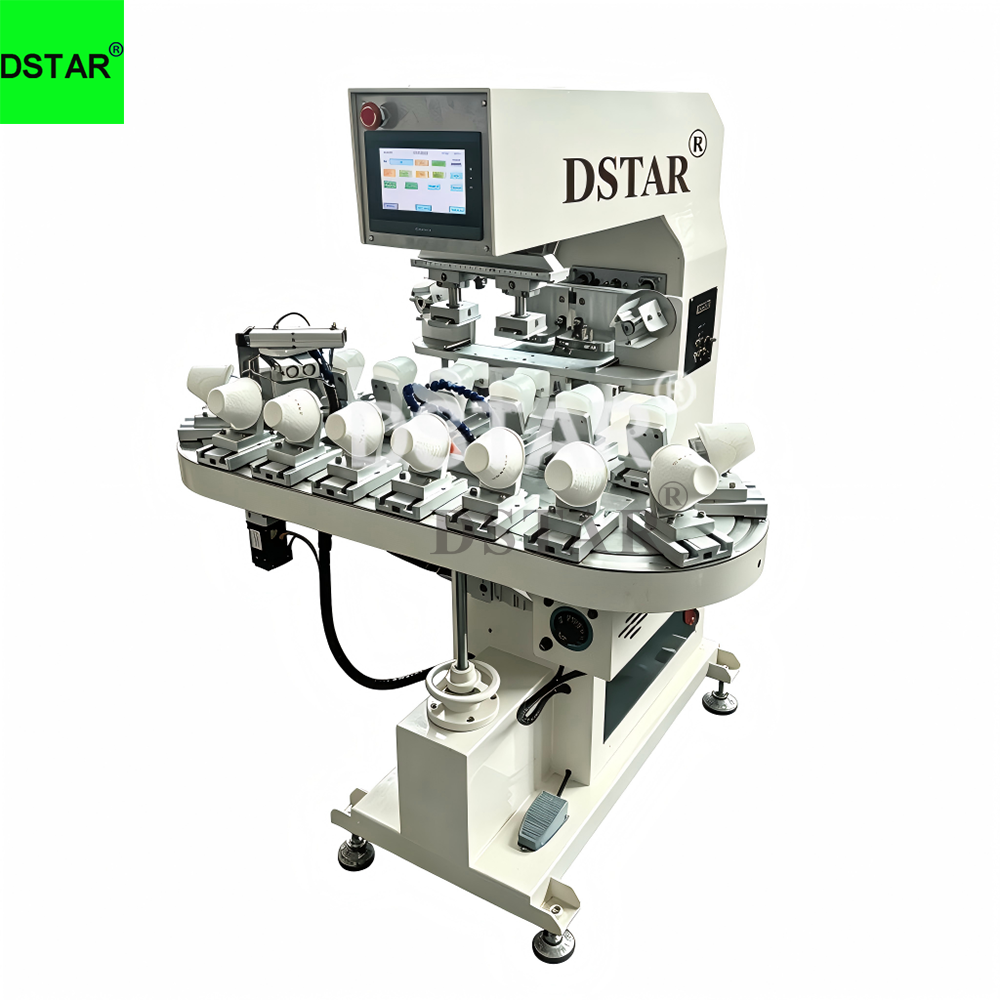

Automatic Unloading 2 Color Paper Cup Pad Printing Machine

Automatic Unloading 2 Color Paper Cup Pad Printing Machine

Machine Data Sheet

Machine Features

Automatic Unloading 2 Color Paper Cup Pad Printing Machine — This equipment is an intelligent, automated pad printing solution designed specifically for the paper cup industry. The system utilizes a high-precision servo-driven rotary table and integrates advanced touchscreen controls, a fully automatic pad cleaning system, and an automatic unloading mechanism. It supports flexible switching between single-color and two-color printing modes, making it an ideal choice for boosting production capacity and ensuring print quality.

1. Intelligent Control System (Touchscreen Operation)

• Equipped with a color touchscreen, providing an intuitive and user-friendly interface.
• Supports digital setting of printing parameters (such as stroke length, speed, etc.).

2. High-Precision Servo Rotary Table System

• Dual-station indexing function: In single-color mode, the servo rotary table advances two stations at a time, allowing two products to be printed simultaneously; this significantly reduces cycle time and enhances production efficiency.
• Precise positioning ensures accurate color registration and effectively reduces the scrap rate.

3. Automatic Pad Cleaning Unit (Automatic Cleaning System)

• Built-in automatic cleaning mechanism to periodically clean the surface of the pad printing pad.
• Prevents ink buildup, maintains pad elasticity and ink transfer performance, and ensures image clarity during continuous printing.

4. Automation Functions (Loading/Unloading and Auxiliary Features)

• Automatic unloading: Equipped with a standard automatic unloading mechanism; finished products are automatically discharged and collected without manual intervention.
• Foot pedal switch: Includes a foot pedal switch for convenient control by operators during setup or when manual intervention is required.

5. Printing Capabilities and Fixtures

• Servo-driven work-holding fixtures designed specifically for paper cups, compatible with various standard tapered paper cups.

Printing Consumables

• Pad printing plate
• Sealed ink cup
• Pad printing ink
• Silicone pad
• Customized fixtures

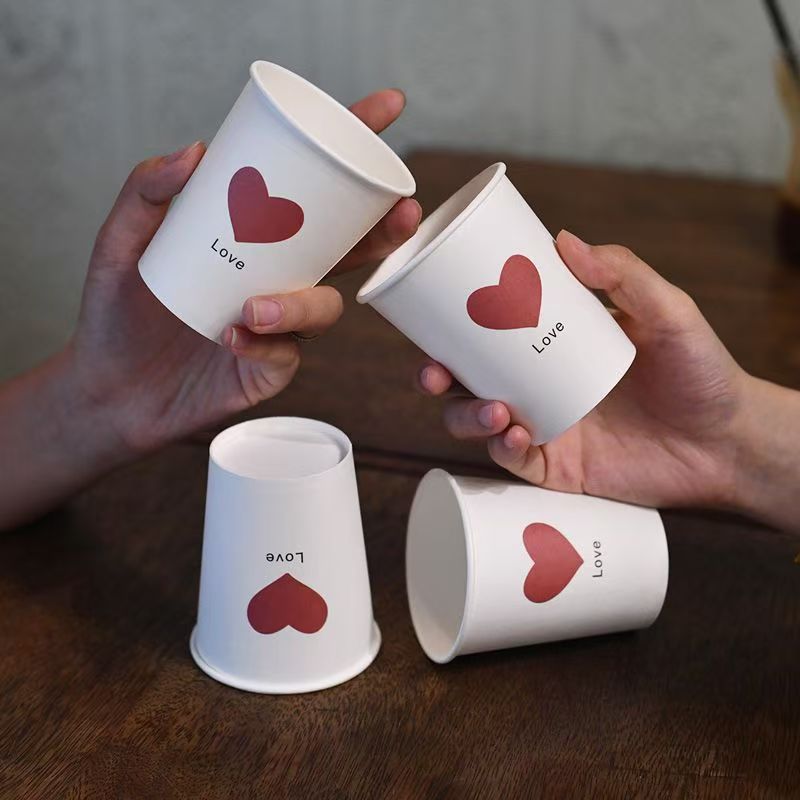

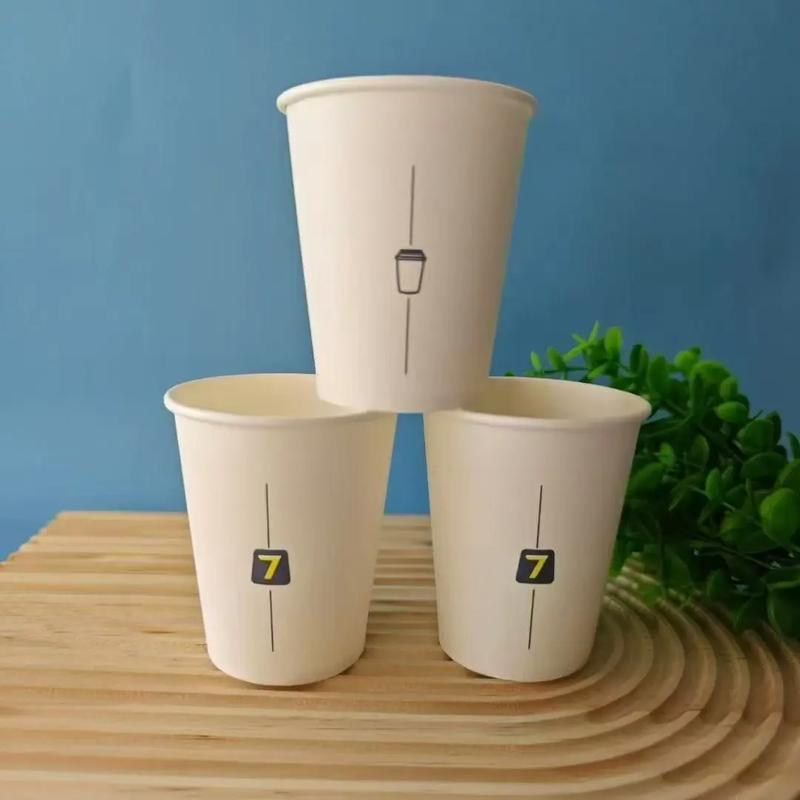

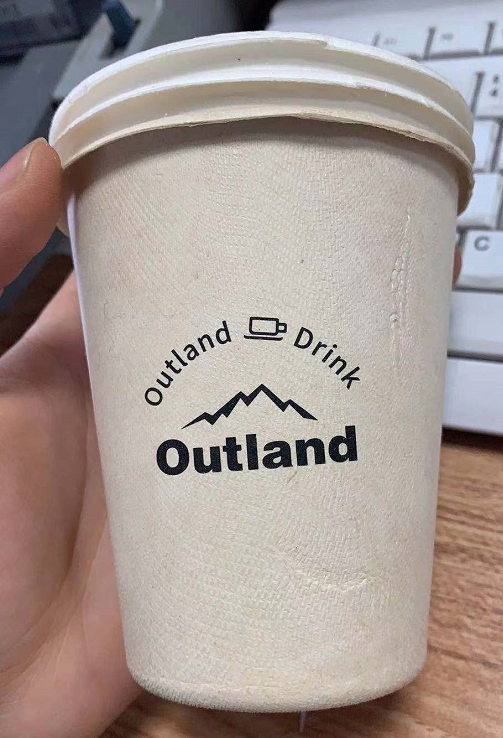

Printing Samples Display
