Pad Printing Ink Cup with Ceramic Ring for Tampography
PRODUCT PARAMETERS
Description
Pad Printing Ink Cup with Ceramic Ring for Tampography
Ink Cup Sizes
| Model | Ink cup ring material | Ring size | Cup body material | Ring bevel | Bevel Type |

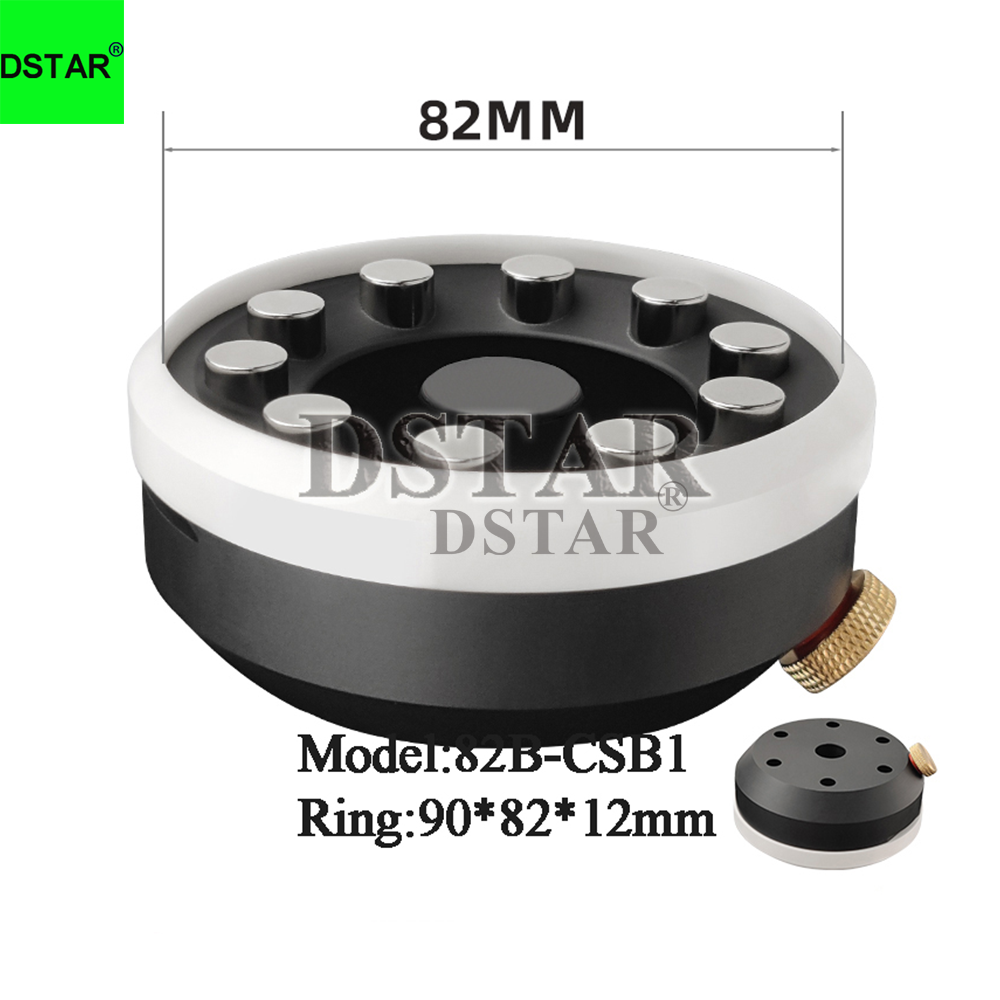

| 82A-CSB1 | Ceramic | φ90*φ82*12mm | Aluminum | Single | B1 |
| 82A-TSB1 | Tungsten (Carbide) | φ90*φ82*12mm | Aluminum | Single | B1 |
| 82B-CSB1 | Ceramic | φ90*φ82*12mm | Aluminum | Single | B1 |
| 82B-TSB1 | Tungsten (Carbide) | φ90*φ82*12mm | Aluminum | Single | B1 |
| 82C-CSB1 | Ceramic | φ90*φ82*12mm | Aluminum | Single | B1 |
| 82C-TSB1 | Tungsten (Carbide) | φ90*φ82*12mm | Aluminum | Single | B1 |
| 82D-CSB1 | Ceramic | φ90*φ82*12mm | Aluminum | Single | B1 |
| 82D-TSB1 | Tungsten (Carbide) | φ90*φ82*12mm | Aluminum | Single | B1 |
| 82F-CSB1 | Ceramic | φ90*φ82*12mm | Aluminum | Single | B1 |
| 82F-TSB1 | Tungsten (Carbide) | φ90*φ82*12mm | Aluminum | Single | B1 |
What’s the advantage of Pad Printing Ink Cup with Ceramic Ring for Tampography?

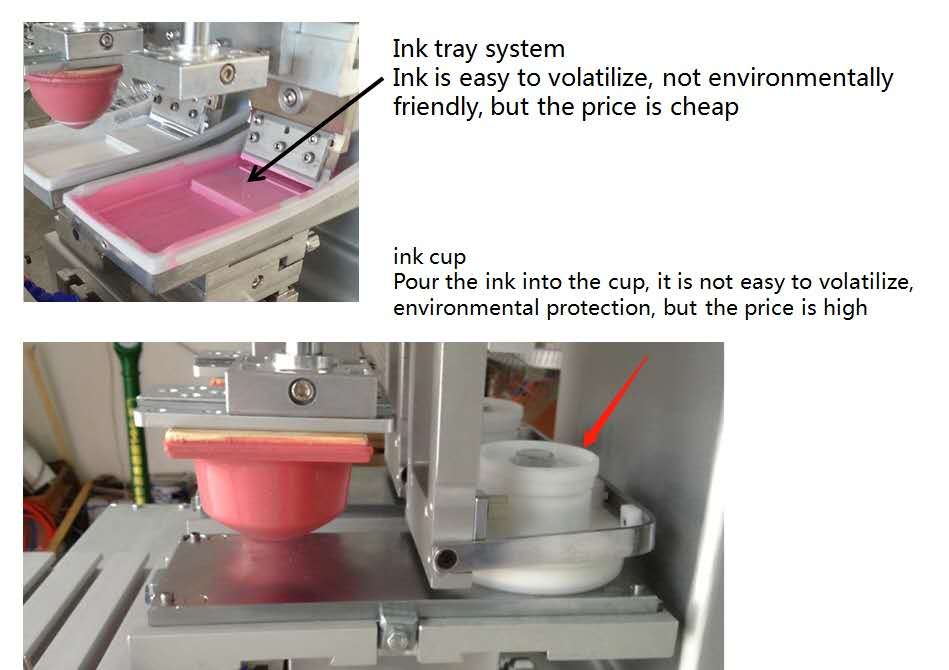

Pad Printing Ink Cup with Ceramic Ring for Tampography:
- 1.Sealed ink storage to save ink.
The ink is enclosed inside the cup, with minimal volatilization and splashing. It effectively prevents ink from drying and crusting, greatly reducing ink consumption.
- 2.Integrated ink scraping to simplify structure.
The ceramic or tungsten steel ring at the bottom of the oil cup acts as a scraper. It completes ink filling and surface ink scraping in one movement, no extra scraper assembly is needed.
- 3.Stabilize ink quality for consistent printing results.
It isolates air and dust, keeping ink viscosity and concentration stable. Less plate clogging and color difference, ideal for precision printing and multi-color overprinting.
- 4.Low volatilization for environmental protection and better working conditions.
It greatly cuts down solvent volatilization and VOC emissions, reduces pungent odor, and lowers occupational health risks for operators.
- 5.Suitable for high-speed production and easy maintenance.
Features smooth reciprocating movement and clean scraping performance, perfect for automated high-speed production lines. It is also easy to clean and change ink colors.
Origin manufacturer
Professional and Rigorous full-process service
Welding & PaintingStable Machine Constructure frame and beautiful appearance(OEM color acceptable)
CNC processingCNC precision, micron accuracy.Every parts must be precise to ensure entire quality.
Milling ProcessingPrecision cutting of planes, grooves, gears for multi-dimensional shaping.
AssemblySystematic fitting of precision parts per blueprints to ensure structural integrity.
ProgrammingCE standard Circuit wiring, component mounting and multi language
RTSWooden case packing for shipment
