Plasma Surface Treatment use before pad printing

Advanced Surface Activation Solution for the Printing Industry

What’s Plasma?

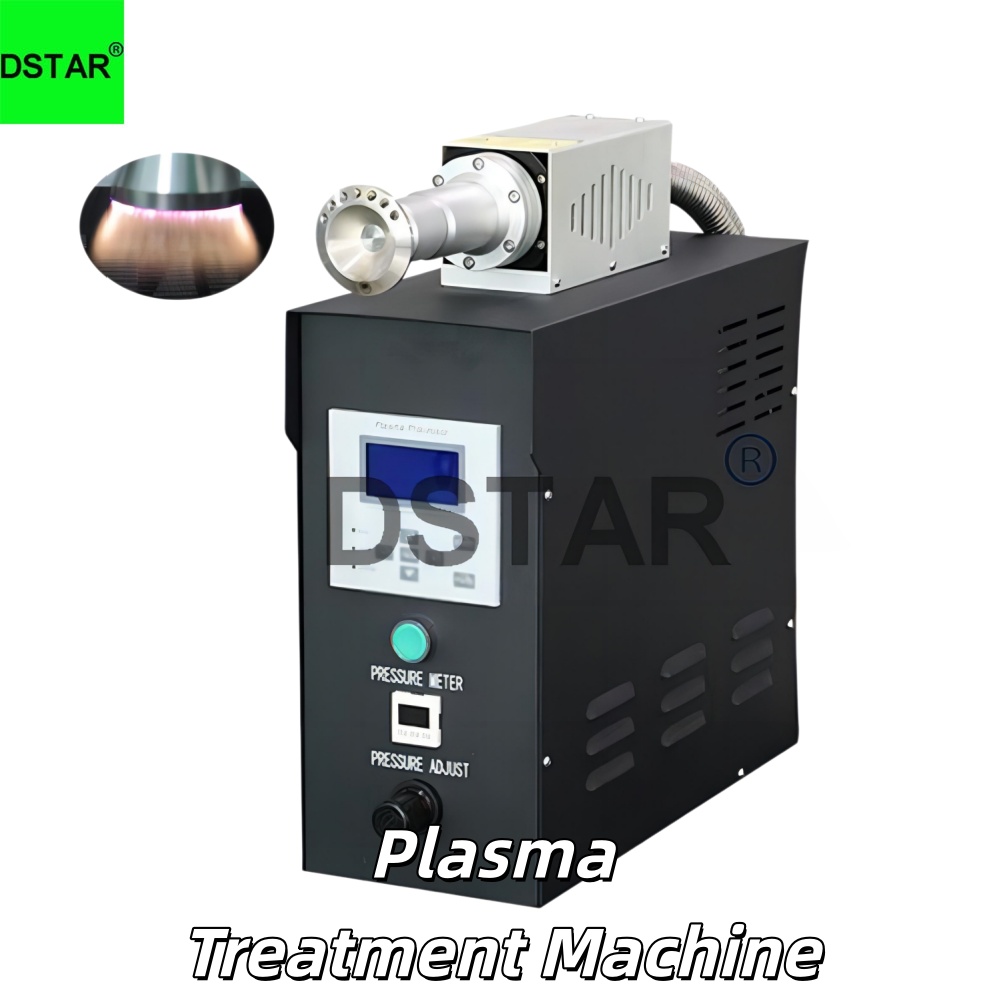

plasma treatment machine

When the matter receives energy, it will change from a solid state to a liquid state, and then from a liquid state to a gas state.

The gas molecules excited by a strong energy will ionize and transform into another state of gas aggregation, that is, the plasma state.

When high-energy plasma bombards the surface of other substances, chemical and physical reactions will occur, resulting in some beneficial functional applications.

The Plasma Surface Treatment Machine is a high-efficiency surface pretreatment system specially designed to improve ink adhesion, coating performance, and printing quality on difficult-to-print materials.

By using atmospheric plasma technology, the machine effectively increases surface energy and removes static electricity, dust, oil, and microscopic contaminants before printing or coating processes.

This technology is widely applied in pad printing, screen printing, digital printing, hot stamping, UV coating, bonding, and labeling industries, especially for plastic, silicone, glass, metal, and composite materials with low surface tension.

Product	Plasma Surface Treatment is used before pad printing
Voltage	AC220( ±10% ) Vac 50/60Hz，
Fuse	10A/250V
Output power	1000W
Power consumed	≤1100
Air supply	0.05MPa～0.5MPa (0.5Kg～5Kg)
Frame size	W183*H 420*L480mm
N.W	15Kg
Plasma treat N.W	5kg
plasma treatment height	5-15MM

Improve Ink Adhesion and Printing Quality

Many plastic and industrial materials, such as PP, PE, PET, ABS, TPU, silicone, and coated surfaces, have low surface energy, which can cause poor ink adhesion, peeling, or unstable printing results. Plasma treatment modifies the material surface at a microscopic level, significantly improving wettability and bonding performance before printing.

After plasma treatment, the substrate surface becomes more receptive to inks, coatings, adhesives, and foils, resulting in:

• Stronger ink adhesion
• More durable printing results
• Reduced printing defects
• Better consistency during mass production
• Improved hot stamping and coating performance

This process is especially important for high-quality industrial printing applications requiring reliable adhesion and long-term durability.

High Efficiency Atmospheric Plasma Technology

The machine adopts advanced atmospheric plasma treatment technology without requiring chemical primers or flame treatment. The plasma generator creates high-frequency ionized air that activates the material surface instantly during the production process.

Compared with traditional flame treatment methods, plasma treatment offers:

• More stable treatment effect
• Higher safety performance
• Lower heat influence on products
• Environmentally friendly operation
• Better precision for complex products

Its non-contact treatment method makes it suitable for sensitive and precision products without damaging the material surface.

Wide Industrial Applications

The Plasma Surface Treatment Machine is widely used in:

• Pad printing industry
• Screen printing industry
• Hot stamping applications
• UV coating production
• Adhesive bonding process
• Automotive component printing
• Cosmetic packaging printing
• Medical product printing

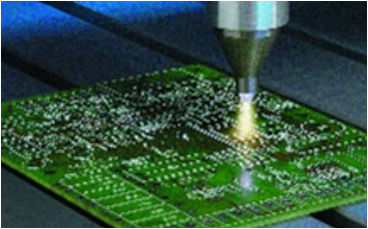

• Electronic product surface treatment
• Glass and plastic decoration industries

It is especially suitable for automatic printing production lines requiring stable pretreatment quality and high production efficiency.

Key Machine Advantages

Significantly improves ink adhesion. Enhances coating and foil bonding performance. Suitable for low surface energy materials. Non-contact and environmentally friendly treatment, Stable and continuous industrial operation, Easy integration with automatic production lines, Low maintenance and energy consumption, Improves overall printing consistency and product quality

Ideal Pretreatment Equipment for Modern Printing Production

As printing quality requirements continue to increase in modern manufacturing industries, plasma surface treatment has become an essential pretreatment process for high-end printing applications. The Plasma Surface Treatment Machine provides manufacturers with a reliable, efficient, and environmentally friendly solution to achieve superior printing adhesion and premium product finishing.

For manufacturers involved in pad printing, screen printing, hot stamping, and industrial decoration processes, plasma treatment technology is an effective way to improve production quality, reduce defects, and increase product value.
