What Is an Automatic Heat Transfer Printing Machine? A Complete Guide for Tube Decorating

In modern manufacturing, the ability to apply custom designs to small cylindrical products—such as pens, lipsticks, and markers—is a critical competitive advantage. While manual methods are often slow and inconsistent, the automatic heat transfer printing machine has emerged as the standard solution for high-efficiency, precision tube decoration.

This guide explains how this machine works, what products it prints, and why it is essential for stationery and cosmetics manufacturers.

What is an Automatic Heat Transfer Printing Machine?

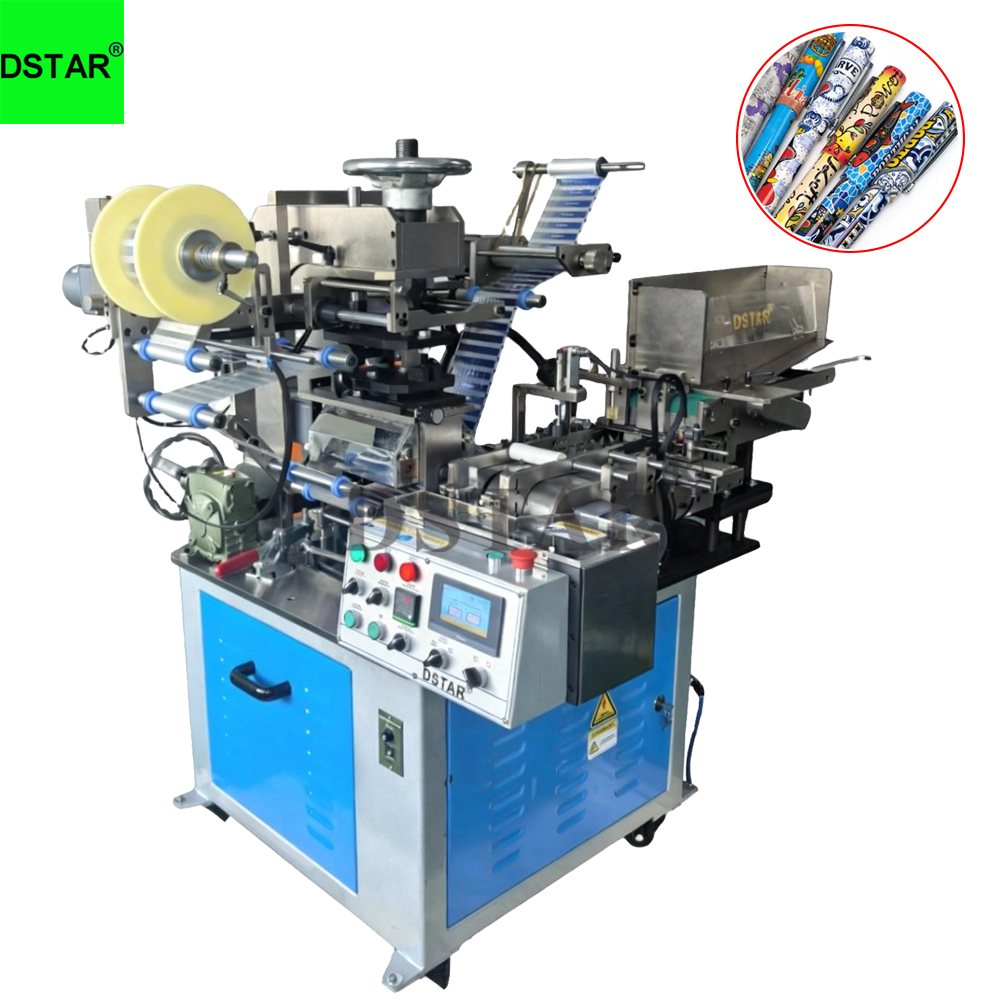

An automatic heat transfer printing machine is a fully automated industrial device that uses heat and pressure to transfer a pre-printed pattern from a carrier film onto the surface of a tubular object. The entire process—loading parts, detecting orientation, applying heat transfer, and unloading finished products—operates without manual intervention.

This distinguishes it from semi-automatic machines, which require an operator to manually load or rotate the tube.

Primary Applications Across Industries

Stationery Industry

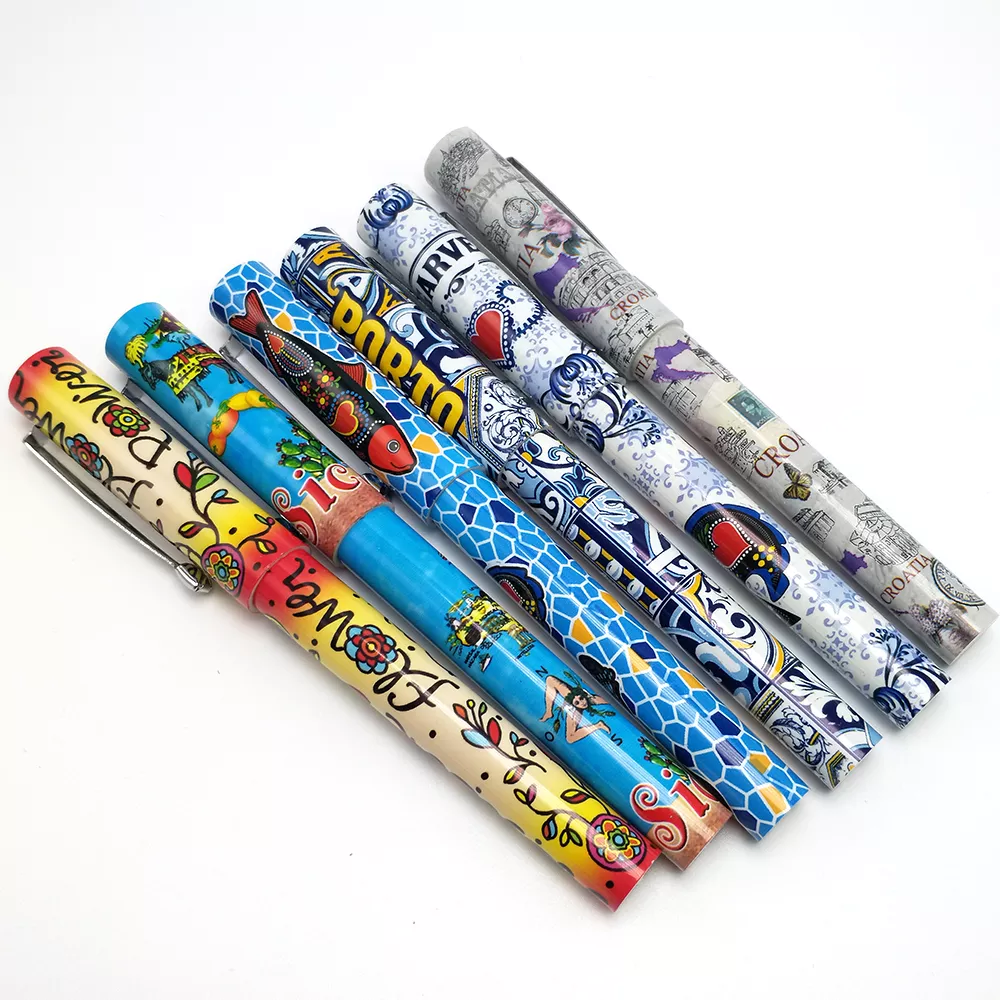

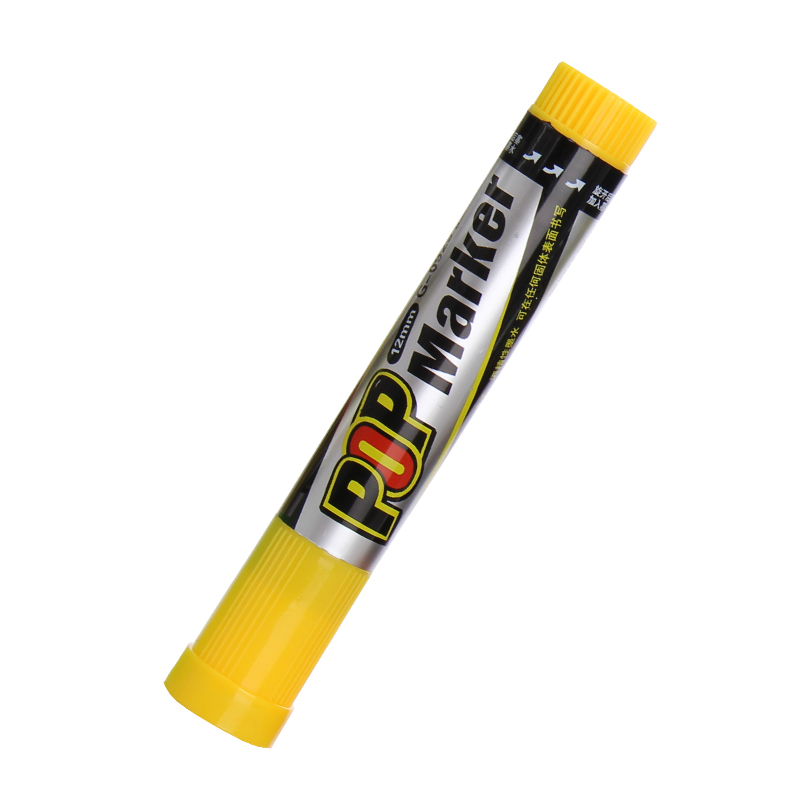

This machine is widely used for pen barrel heat transfer printing (including ballpoint pens, fountain pens, and markers). It also handles pen refills and solid glue sticks. The result is a durable, high-resolution logo or pattern that wraps smoothly around the tube without visible seams.

Cosmetics Industry

In beauty packaging, lipstick tube heat transfer printing and makeup pencil printing are common applications. The automatic heat transfer printing machine works on plastic, metal, and coated glass cylinders, delivering a premium finish that is resistant to rubbing and scratching.

How Does the Automatic Heat Transfer Printing Machine Work?

The operation follows five automated steps:

1. Feeding – Raw tubes are loaded into a bulk hopper. No manual sorting is required.
2. Orientation Detection – Sensors scan each tube to verify its direction (top/bottom). If the tube is oriented incorrectly, the machine automatically reverses it.
3. Film Alignment – A heat transfer film containing the printed design is fed through the machine and aligned with the tube.
4. Heat Transfer – A heated silicone roller presses the film against the tube, transferring the design at a controlled temperature and pressure.
5. Unloading – The printed tube is ejected into a collection bin, ready for packaging.

The entire cycle takes only a few seconds per tube, enabling high-volume production.

What Makes This Machine Different from Standard Models?

Many heat transfer machines are designed only for flat surfaces. This model is optimized for small-diameter tubes (e.g., 4–22mm diameter) and features two unique capabilities:

• Auto-reversal – Standard machines cannot process tubes that face the wrong direction. This machine detects and corrects orientation automatically, eliminating a common bottleneck.
• Quick-switch design – Operators can change from printing ballpoint pens to lipstick tubes in minutes, without tools. This flexibility supports small-batch or custom orders.

Is This Machine Suitable for Small or Large Factories?

Yes. Despite its full automation, the automatic heat transfer printing machine has a compact footprint (approximately 1.2m x 1.2m floor space). It requires only a standard 220V power supply and compressed air (6 bar).

This makes it practical for:

• Small workshops upgrading from semi automatic transfer printing.
• Medium-to-large factories running multiple product lines.
• Contract manufacturers that handle both stationery and cosmetic orders.

Maintenance Considerations

To maintain optimal performance, follow these routine checks:

• Rubber roller replacement – after 50,000-80,000 prints (depends on temperature).
• Film – check weekly to prevent wrinkling.
• Sensor cleaning – remove dust from the orientation sensors daily.

Conclusion

An automatic heat transfer printing machine is the most efficient solution for applying high-quality designs to cylindrical products like pens, markers, lipsticks, and glue sticks. It eliminates manual sorting, reduces waste, and allows one machine to handle multiple product types with fast changeovers.

For manufacturers looking to improve output consistency while reducing labor dependency, this machine represents a proven, long-term investment.
